|Model||FD6194E Digital Sublimation Printer|
|Print Head Type and Numbers||4 EPSON Original I3200-A1 Heads|
|Ink Color||C M Y K|
|Ink Type||Water-Based Ink ,Pigment Ink, Dye sublimation ink.|
|RIP Software||INTOP6.0, PHOTOPRINT, ONYX, NEOSTAMPA|
|Print File Format||BMP, TIF, JPG, PDF Etc.|
|Drying System||Extra Front Heating System|
|Materails Feeding Method||Roll to Roll, Leaf|
|Color Management||ICC Based; Density & Curves Adjustable|
|Power Supply||50HZ/60HZ,110~ 220V, 10A|
|Package Dimension (L*W*H)||3500*1150*1900mm|
|Working Environment Temperature||20C-35C (68F-95F)|
|Working Environment Humidity||35%-65%Rh|
|Printing Speed||2pass: 180 Sqm/Hr 3pass: 120Sqm/Hr 4pass: 90 Sqm/Hr|

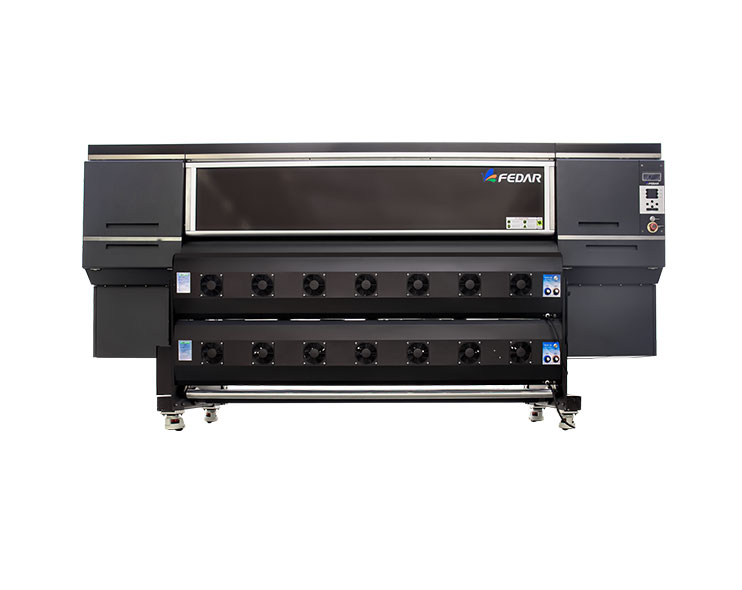

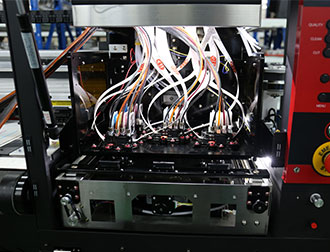

Fedar FD6194E Digital Sublimation Printer uses Four Epson original I3200-A1 printing heads. Its nozzle has 4 pairs of nozzle holes, a total of 8 columns, each column has 400 nozzle holes, that is totally including 3200 nozzle holes, max resolution: 3200DPI. The printing speed can be more than 180 sqm/h, It uses TFP thin film piezoelectric technology and 2.5PL variable dot ink drop function, accurately positioning the ink drop, the image color layer is richer and fuller, and the printing effect is more exquisite. The Epson I3200-A1 head adopts automatic cleaning and automatic flash spray function to prevent blockage.

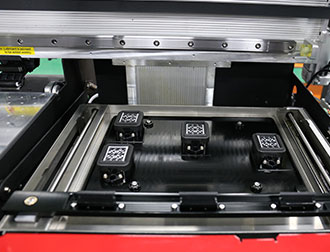

FD6194E Digital Sublimation Printer equipped with advanced intelligent nozzle cleaning and moisturizing device, providing safe and convenient nozzle cleaning and maintenance functions, making operation and maintenance more convenient. The working principle of the automatic ink cleaning function: the digital printing machine draws the ink through the nozzle of the ink pump in the ink stack to achieve the purpose of cleaning and moisturizing, preventing the nozzle from clogging.

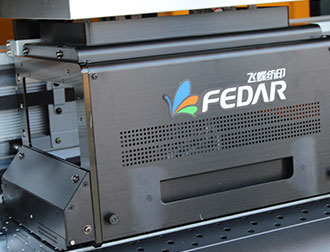

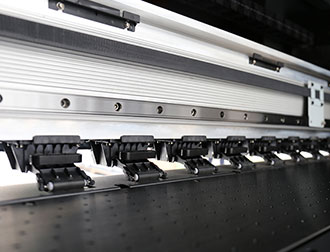

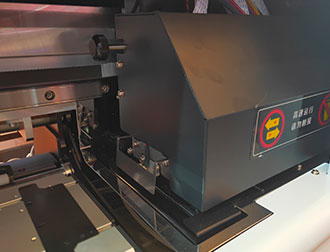

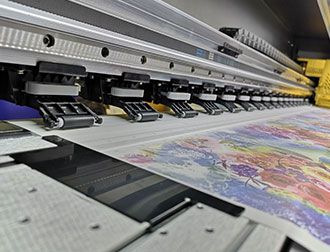

The height of the head carriage can be adjusted according to different thicknesses of printing materials. The anti-scratch-paper function on both sides of the small frame can reduce the damage of the nozzle caused by the paper tilting.
The assembly precision of the machine printing platform is controlled within plus or minus 7.5 wires, which lays the foundation for high-precision and high-quality production. The overall honeycomb aluminum alloy platform is hard-oxidized on the surface and will not deform for a long time.

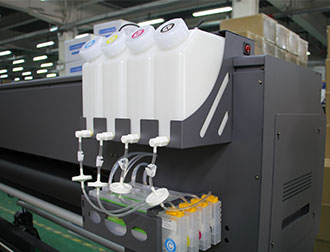

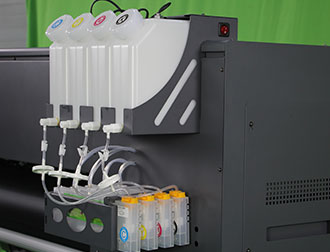

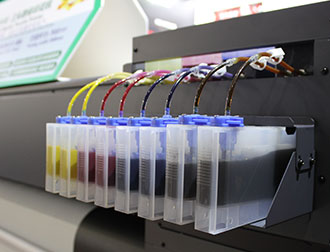

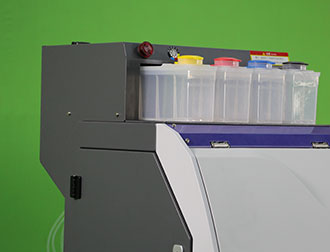

FD6194E Digital Sublimation Printer uses four 3L super-large-capacity ink tank with independent and continuous ink supply. The powerful continuous supply ink supply system provides support for the improvement of production efficiency, avoiding the frequent shortage of ink in production and the heavy work caused by back and forth inspection.
Intelligent ink shortage system reminding, reduces the tediousness of frequently checking the remaining ink, and promptly reminds to add ink to ensure the continuity of printing work.

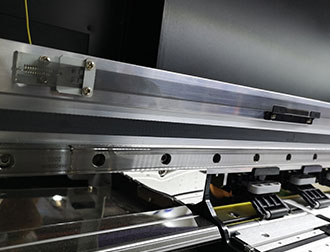

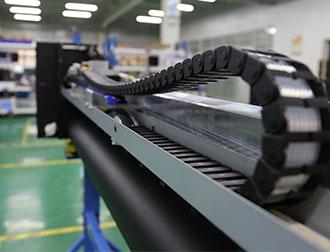

The core components are made of high-quality industry accessories such as Japanese THK ultra-quiet linear guide rails, Japanese NSK bearings, German IGUS INK chain, LEADSHINE servo motor, etc. All of these ensure the accuracy of the machine and the stability of long-term work.

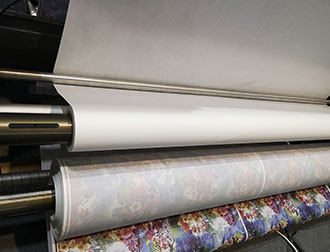

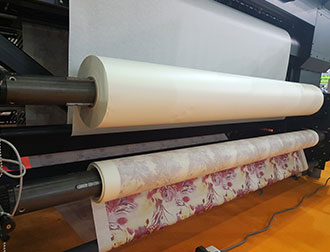

Integrated feeding and take-up unit with inflatable rollers, 500m paper (30-90GSM) can be loaded.

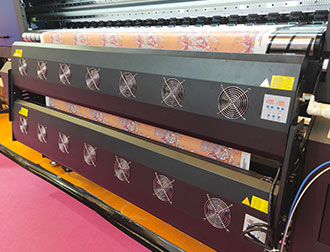

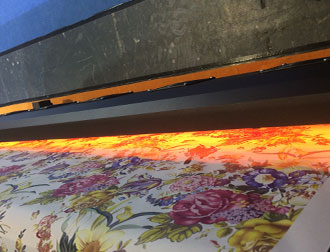

Fedar FD6194E Digital Sublimation Printer synchronized with printing, energy saving and emission reduction, the temperature can be adjusted according to the actual situation during printing.
Fedar FD6194E Digital Sublimation Printer can be used in heat transfer mainly includes high-temperature heat transfer (used for cotton and blended knitted garments, such as T-shirts, pajamas, etc. The pattern has a photo-quality effect, and it is soft and flexible after the heat transfer process.), low temperature heat transfer (for nylon cloth and PU artificial leather, such as stretch sportswear, swimwear, down jacket, sports shoes, leather gloves, etc., the effect after heat press is the same as high temperature heat transfer. Applied for flexible clothing, it specially has excellent flexible effect).
