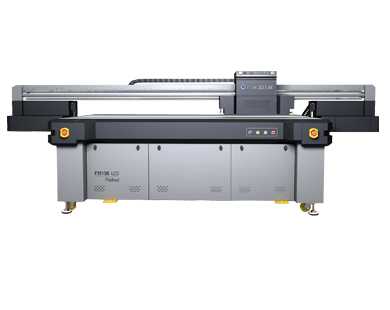

SC-2513UV Pro


SkyColor SC-2513UV Pro Flatbed UV Printer uses 2-8 Ricoh Gen5 Printhead, Max Resolution: 2400DPI, Printer Width: 2500*1300mm, Max Printing Speed: 40Sqm/Hr.

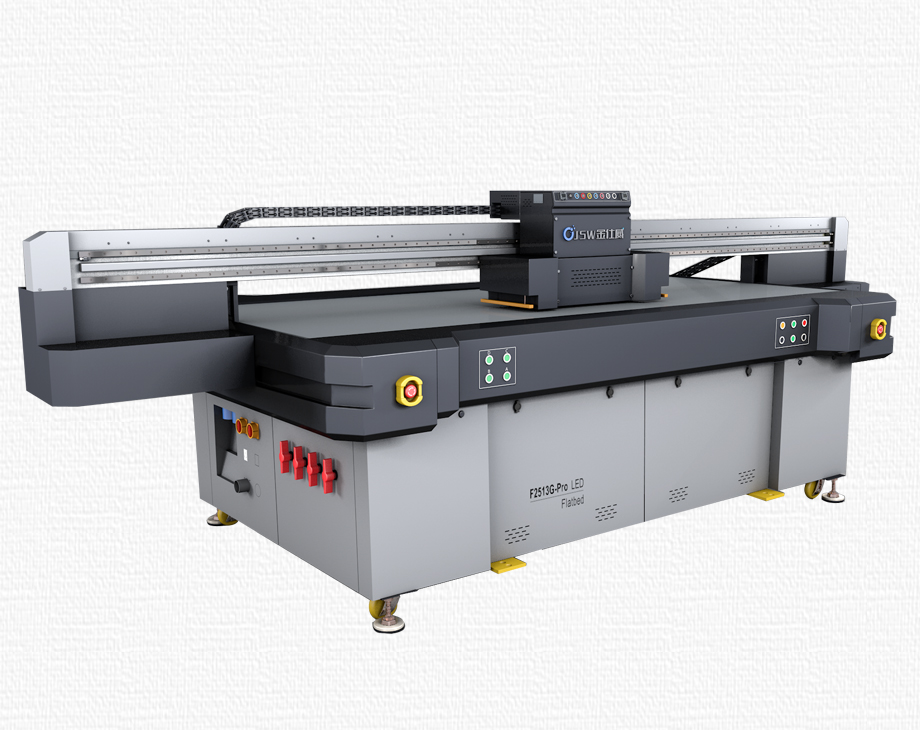

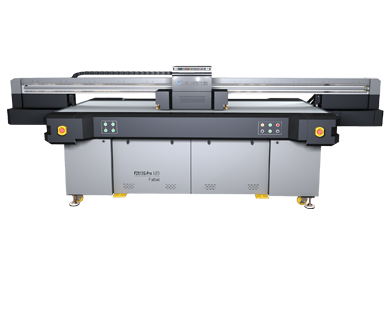

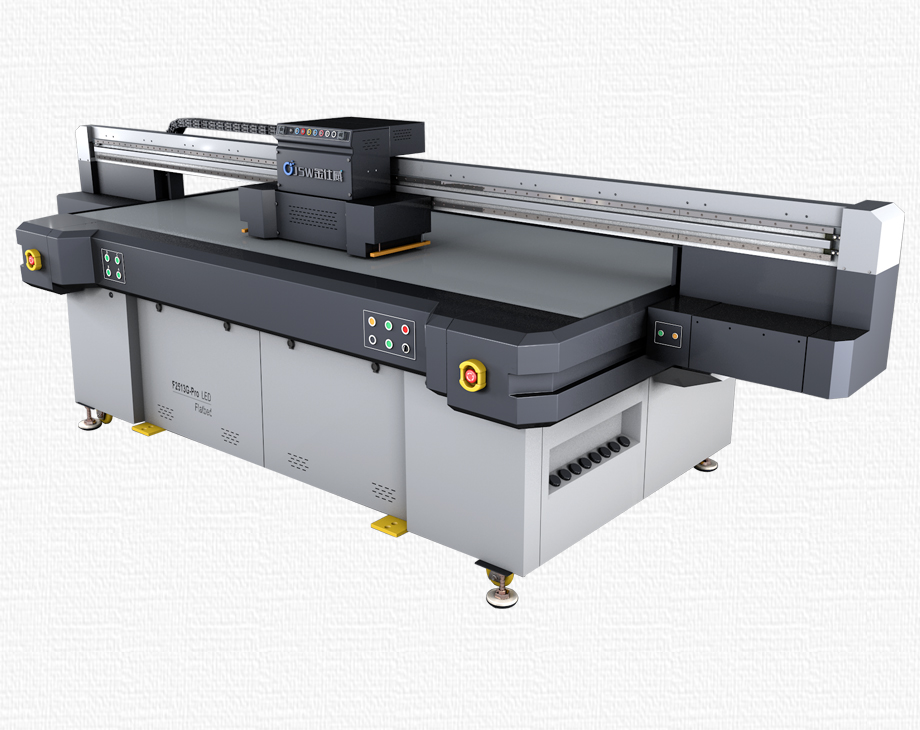

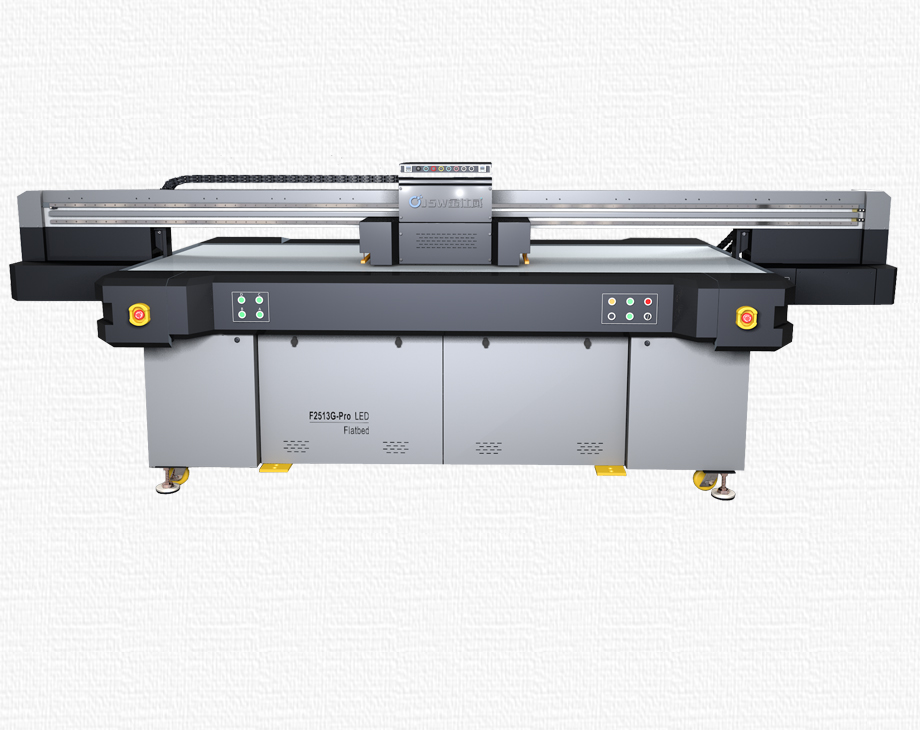

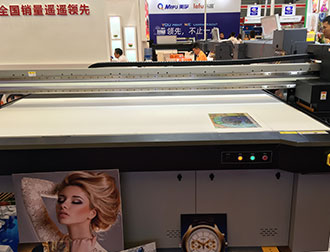

SC-2513UV Pro Flatbed UV Printer

Printing Size 2000*3000MM
Print Thickness 1~100mm
Print Head  Ricoh Gen6 (5PL) Grey Scale Micro Piezo Printhead
Numbers of Print Head  2~8 Pcs
Carriage Lifting Function Carriage Height Automatic Adjustment, Intelligent Detection of Material Thickness
Ink Type Environment Friendly UV Curing Ink
Print Color

CMYK / CMYK, LC, LM + White + Varnish

Volume of Ink Tank 2.5L
Ink Supply System Automatic Negative Pressure Ink Supply System
Ink Monitoring System Automatic Ink Alarm System

RIP Software

Standard: PhotoPrint. Print Factory and Onyx Optional.

Print File Format

Color Management ICC Based; Density & Curves Adjustable
Power Supply 50HZ/60HZ, 110~220V
Working Environment Temperature 20C-35C (68F-95F)
Working Environment Humidity 35%-65%Rh
Printing Speed High Speed Mode    116Sqm/H
Production Mode    81Sqm/H
High Quality Mode    56Sqm/H

Product Application

Technical Data

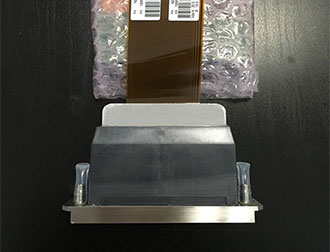

    • 01PRINT HEAD

      SkyColor SC-2513UV Pro Flat Bed UV Printer uses 2-8 Ricoh Gen5 Printhead, Max Resolution: 2400DPI, Printer Width: 2500*1300mm, Max Printing Speed: 40Sqm/Hr.

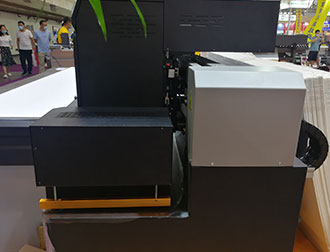

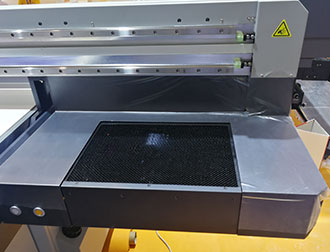

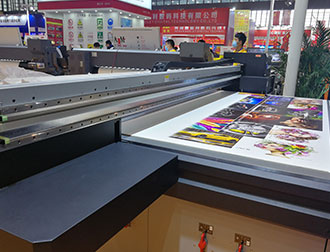

      SkyColor SC-2513UV Pro Flatbed UV Printer is equipped with advanced intelligent nozzle cleaning and moisturizing device, providing safe and convenient nozzle cleaning and maintenance functions, making operation and maintenance more convenient. The working principle of the automatic ink cleaning function: the digital printing machine draws the ink through the nozzle of the ink pump in the ink stack to achieve the purpose of cleaning and moisturizing, preventing the nozzle from clogging.

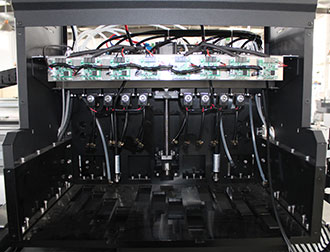

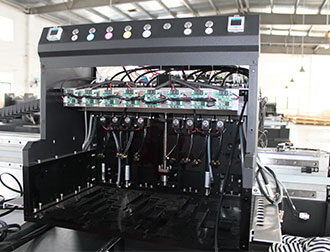

      SkyColor SC-2513UV Pro Flat Bed UV Printer Weak current controls strong electricity,strong electricity and weak current separation layout,Ink path and circuit separation layout. The machine uses high-flex cable. Its circuit and ink path design meets European CE standards, and a protective sleeve is added to each set of pipelines to extend service life while reducing failure rate.

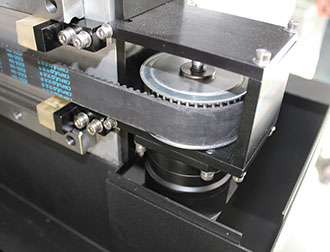

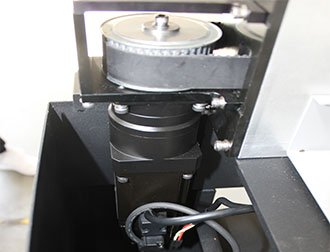

      X-axis movement adopts the maintenance-free planetary reducer + servo motor transmission mode, which is more stable and durable in high-speed motion, and solves the trouble of frequently replacing the small belt. Y-axis adopts Taiwan GTEN silent steel ball screw + Korea WON mute guide rail, 750W high-power servo motor to ensure its smooth operation.

    • 05INK TANK

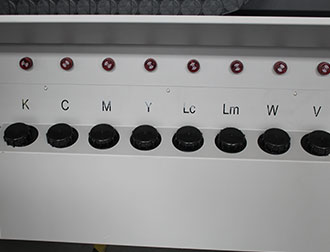

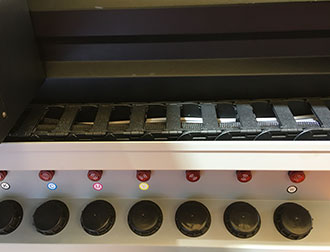

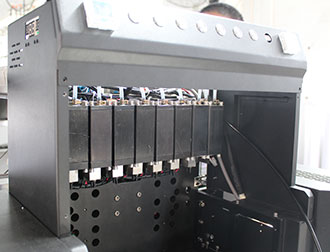

      SkyColor SC-2513UV Pro Flat Bed UV Printer uses super-large-capacity ink tank with independent and continuous ink supply. 2.5L ink tank to reduce frequent ink refilling; Ink alarm function, remind customers to add ink, White ink automatic circulation function.

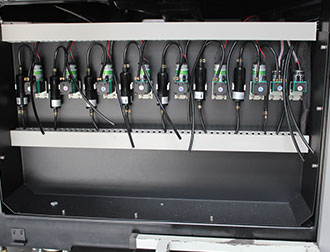

      Corrosion-resistant, high-airtight integrated ink cartridge electric valve to prevent dripping. The machine is equipped with automatic control, eliminating the need to manually operate the switching valve. Solve the problem of ink leakage in manual valves and increase the degree of automation.

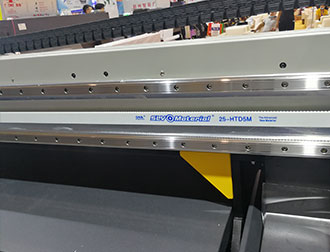

      The core components are made of high-quality industry accessories such as Japanese THK ultra-quiet linear guide rails, Japanese NSK bearings, German IGUS INK chain, LEADSHINE servo motor, etc. All of these ensure the accuracy of the machine and the stability of long-term work.


      The whole frame is welded with square steel, industrial grade design, the whole structure is strong and stable, which ensures that the equipment is stable and does not shake during.

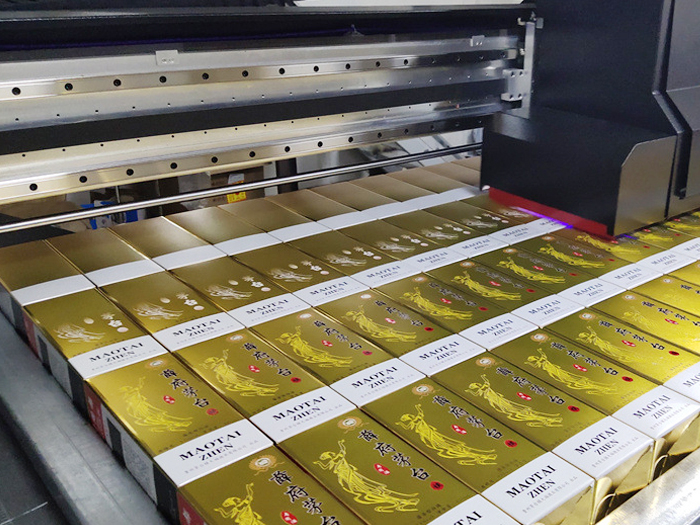

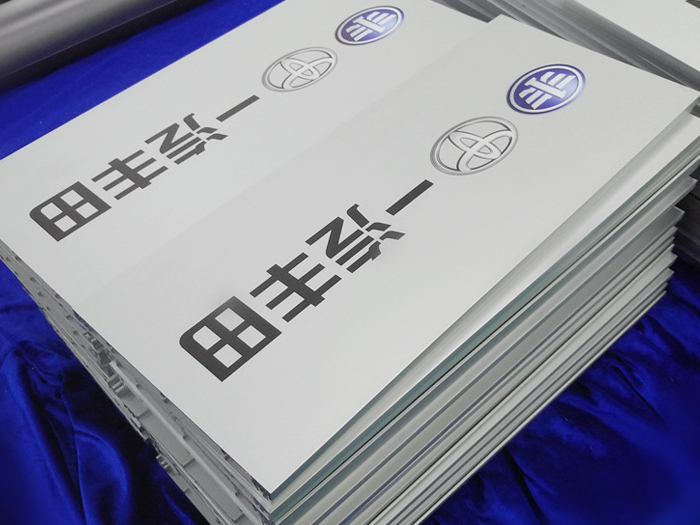

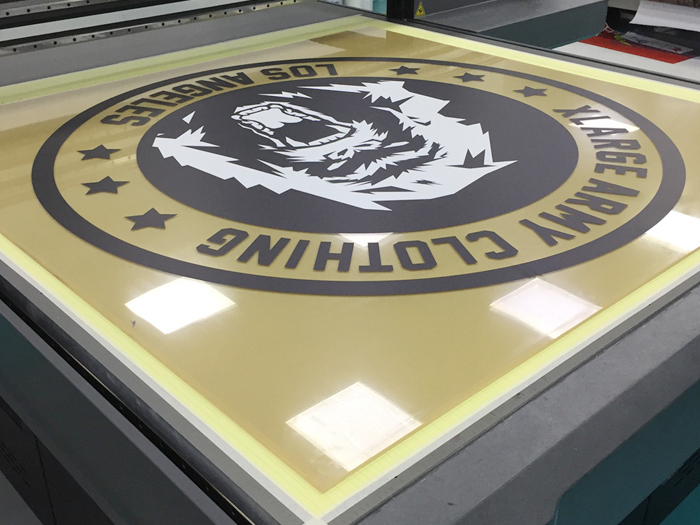

SkyColor SC-2513UV Flat Bed UV Printer can be used in can be used in Advertising industry: signage, POP products, advertising products, exhibition props. Home construction: decorative glass, sliding door cabinets, ceilings, background curtain walls, environmental protection UV decorative panels, decorative lamps. Video products and decorative paintings: decorative oil paintings, leather products, 3D decorative paintings, photo frames, wedding images. Electronic appliances: home appliance panels, membrane switches, customized color shells. Gifts and packaging: customized gifts, stationery and toys, packaging products.
