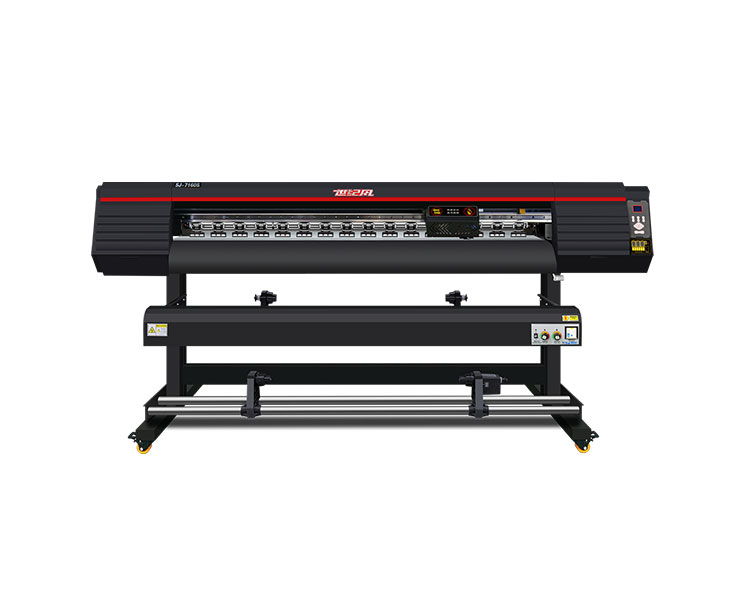

Stormjet SJ-7162 1600mm Eco Solvent Wide Format Printer use Epson DX5 heads Max Printing Width: 1600mm, Max Resolution: 1440DPI, Max Printing Speed: 32Sqm/H. Or Epson I3200-E1 heads, Max Printing Width: 1600mm, Max Resolution: 3200DPI, Max Printing Speed: 80Sqm/H
|Print Head Type||Two EPSON DX5 heads||Two Epson I3200-E1 heads|
|Printing Speed||4pass 32Sqm/H||2pass 80Sqm/H|
|6pass 26Sqm/H||3pass 55Sqm/H|
|8pass 18Sqm/H||4pass 40Sqm/H|
|Max Resolution||1440DPI or 3200DPI|
|Ink Color||Double C M Y K|
|Ink Type||Water-Based Ink, Eco Solvent Ink|
|Ink Supply Type||Bulk Ink Supply System|
|RIP Software||MAINTOP6.0, PHOTOPRINT19, ONYX 19|
|Interface||Giga-bit Ethernet Port|
|Print File Format||BMP, TIF, JPG, PDF Etc.|
|Drying System||Extra Front Heating System|
|Optional Device||Intelligent Dryer, Auto Feeding and Take-up System, Anti Collision System|
|Color Management||ICC Based; Density & Curves Adjustable|
|Power Supply||50HZ/60HZ,110~ 220V, 10A|
|Working Environment||Temp.:15 -30°C, Humidity: 35-65%|
|Package Dimension (L*W*H)||2494*700*1279mm|
StormJet SJ-7162 Wide Format Eco Solvent Printer uses double Epson Original I3200-E1 heads. The printing speed can be more than 80 Sqm/h, It uses TFP thin film piezoelectric technology and 2.5PL variable dot ink drop function, accurately positioning the ink drop, the image color layer is richer and fuller, and the printing effect is more exquisite. Epson I3200-E1 heads, Max Printing Width: 1600mm, Max Resolution: 3200DPI, Max Printing Speed: 80Sqm/H

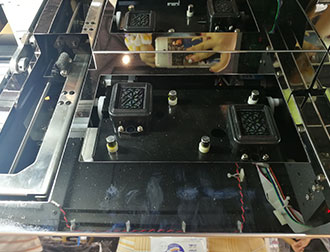

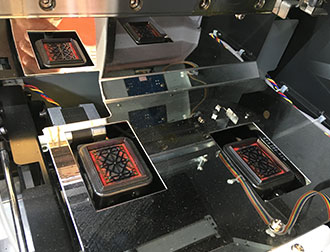

StormJet SJ-7162 Wide Format Eco Solvent Printer equipped with advanced intelligent nozzle cleaning and moisturizing device, providing safe and convenient nozzle cleaning and maintenance functions, making operation and maintenance more convenient.

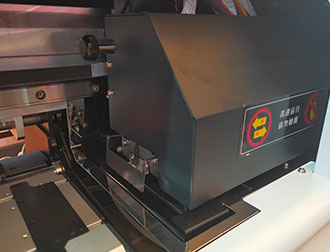

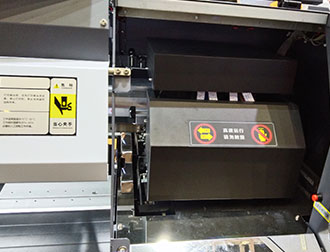

The height of the head carriage can be independently adjusted according to different thicknesses of media. The anti-scratch-paper function on both sides of the small frame can reduce the damage of the nozzle caused by the paper tilting.

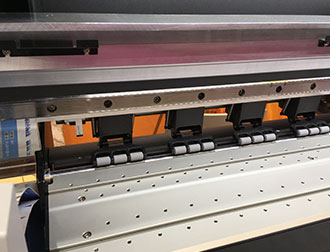

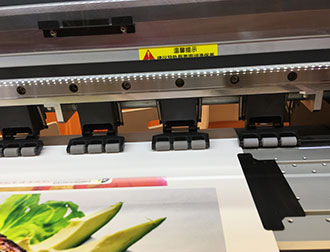

The assembly precision of the machine printing platform is controlled within plus or minus 7.5 wires, which lays the foundation for high-precision and high-quality production. The overall honeycomb aluminum alloy platform is hard-oxidized on the surface and will not deform for a long time.

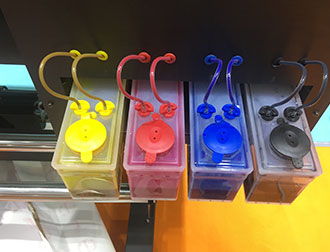

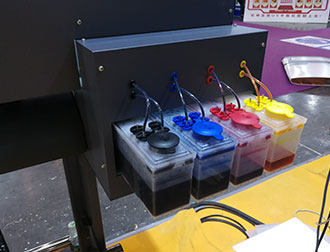

StormJet SJ-7162 Wide Format Eco Solvent Printer uses four 3L super-large-capacity ink tank with independent and continuous ink supply. The powerful continuous ink supply system provides support for the improvement of production efficiency, avoiding the frequent shortage of ink in production and the heavy work caused by back and forth inspection.

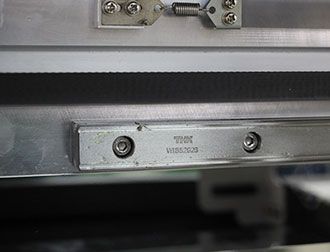

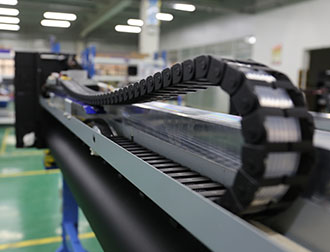

The core components are made of high-quality industry accessories such as Japanese THK ultra-quiet linear guide rail, Japanese NSK bearings, German IGUS INK chain, LEADSHINE servo motor, etc. All of these ensure the accuracy of the machine and the stability of long-term work.

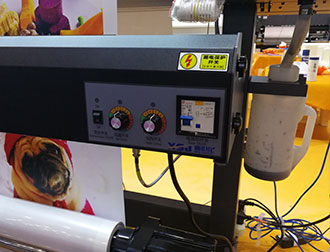

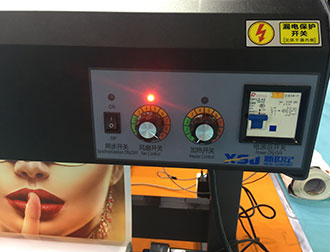

StormJet SJ-7162 Wide Format Eco Solvent Printer synchronized with printing, energy saving and emission reduction, the temperature can be adjusted according to different printing speed.

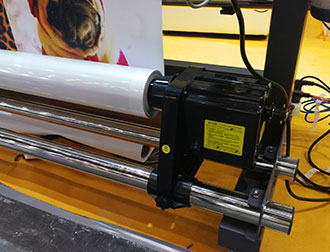

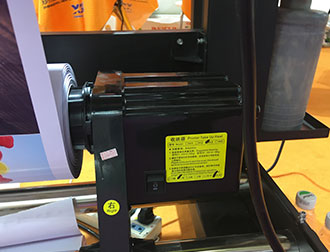

This taking up system can ensure that the left and right sides of the paper-receiving paper have the same pulling force; the rewinding is tidy and does not deviate.
StormJet SJ-7162 Wide Format Eco Solvent Printer can be used for indoor and outdoor advertising printing, car stickers, light box films, oil paintings, silk cloth, building materials, home furnishings, sliding door soft-packing, cellophane, etc.
