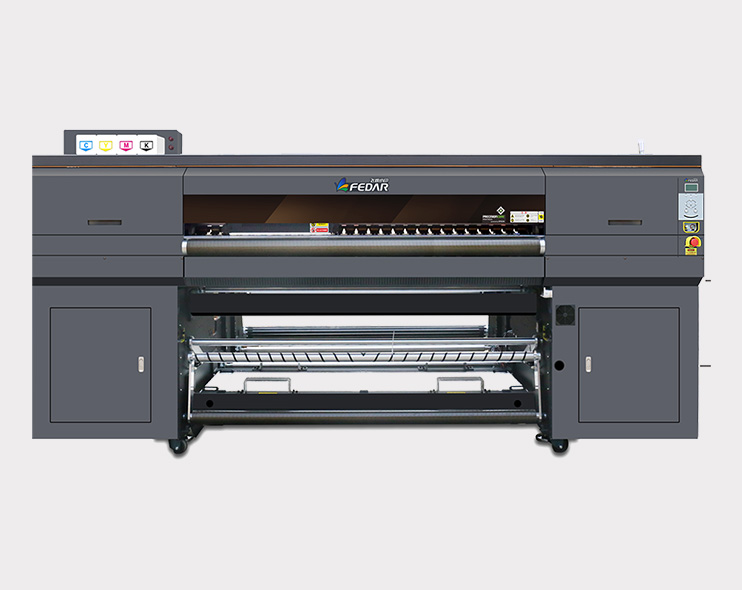

Fedar FD51915E Large Format Sublimation Printer uses 15 Epson Original I3200-A1 print heads. Max Printing Width: 1900mm. Max Resolution: 3200DPI. Max Printing Speed: 1PASS: 610m2/h.
| Model | FD51915E |
| Printhead | 15 Pcs EPSON I3200-A1 Printhead |
| Print Speed | 1PASS: 610 m2/h |
| Ink Type | Type: Sublimation Ink, Color: CMYK |
| Print Width | 1900mm |
| Print Media | Transfer Paper |
| Media Transmit | Pinch Roller Mode |
| Dyer | Extra Intelligent Fan Dryer |
| Moisture Mode | Full Seal Auto Moisture and Cleaning |
| RIP Software | Maintop, FlexiPRINT, ONYX, Neostampa and etc. Maintop 7.0(Standard Equipped) |
| Image Format | JPG,TIF, PDF, etc. |
| Working Environment | Temp.: 18°C-30°C, Humidity: 35%-65% |
| Machine Size | 3900*1610*1880mm |
EPSON I3200-A1 printhead has 3200 nozzles, variable drop ink technology, improves printing resolution, improves color restoration degree, up to four levels of gray print can be supported.
Fully sealed capping station, auto cleaning, flash and moisturizing,easy to operate and maintain.

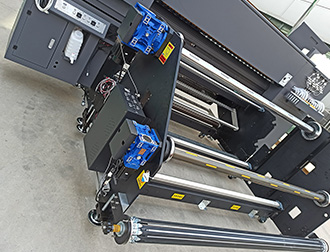

The feeding & take-up system is equipped with industrial motor, which adopts precise servo control to make paper moving more accurate.
It is easy and convenient to adjust the printhead height according to different media. And anti collision system installed on both sides of carriage, which automatic detect any force on carriage way to protect the printhead inside.
Standard with 15L bulk tank ink supply system, which ensures constant ink supply and guarantees output quality. Ink shortage alarm system is equipped to remind operator to refill ink timely.
Japanese double THK mute guide rail, moving steadily, longer working life, and reducing the resistance and noise of carriage moving during the high speed printing.
Adopt pneumatic pinch rollers lifting structure design.
Support max 2000m and roll diameter less than 0.48m media loading, which can reduce the frequency of media loading. There is swing shaft with sensor bar which can provide constant tension during media taking up (10000m media feeding &take-up unit is optional) .
Clothing: Women's Clothing, Men's Clothing, Kids' Clothing, Sportswear, Swimwear, Scarf, Hat, Socks, etc.
Textile: Cushion, Bed Sheet, Quilt Cover, Sofa Cover.
Shoes & Bag: Leather Bag, Canvas Bag, Suitcase, Canvas Shoes, Slipper.
Household: Carpet, Curtain, Umbrella.
Advertising: Flag, Banner.
