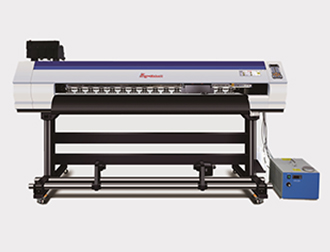

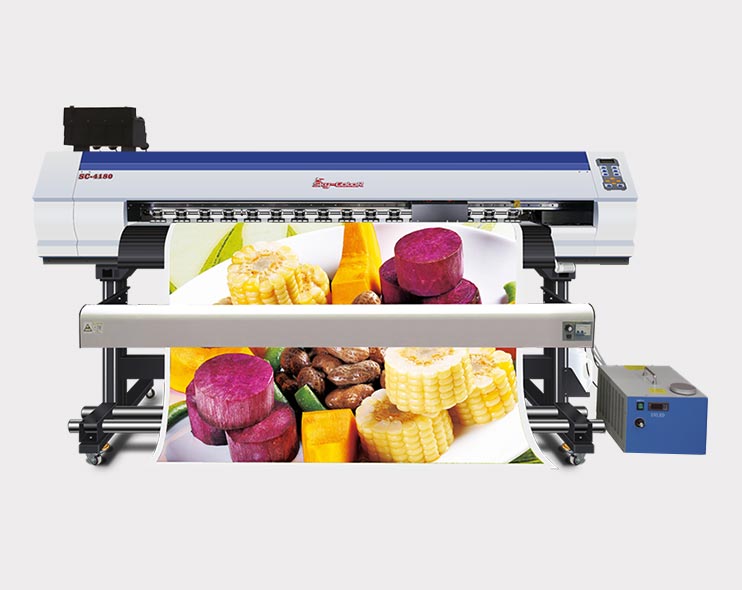

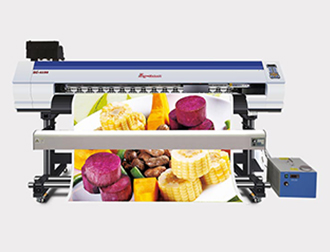

SC-4180UV

Introduce

SkyColor SC-4180UV Roll to Roll UV Printer uses Epson I3200-U1 heads, Max Printing Width: 1800mm. Max Resolution: 3200DPI. Max Printing Speed: 6pass: 12Sqm/Hr.

Parameters

Model SC-4180UV Roll to Roll UV Printer
Printing Size 1800mm
Print Head Type and Number Three Epson I3200-U1 heads
Printing Speed 6pass 12Sqm/H 8pass 8Sqm/H
Max Resolution 3200DPI
Ink Color CMYK+W/W+CMYK
Ink Type LED UV Curing Ink
Ink Supply Type Bulk Ink System
RIP Software MAINTOP6.0、PHOTOPRINT19 、ONYX19
Interface Giga-bit Ethernet Port
Print File Format BMP, TIF, JPG, PDF Etc.
Drying System Extra Front Heating System
Optional Device Intelligent Dryer, Auto Feeding and Take-up System, Anti Collusion System
Color Management ICC Based; Density & Curves Adjustable
Power Supply 50HZ/60HZ, 220V, 10A
Working Environment Temp.:15 -30°C, Humidity: 35-65%
Package Dimension (L*W*H) 2770*749*1368mm
Gross. Weight 320KGS

Product Application

Technical Data

    • 01PRINT HEAD

      SkyColor SC-4180UV Roll to Roll UV Printer uses Double Epson I3200-U1 heads. The printing speed can reach up to 12 sqm/h, It uses TFP thin film piezoelectric technology and 2.5PL variable dot ink drop function, accurately positioning the ink drop, the image color layer is richer and fuller, and the printing effect is more exquisite. The Epson heads adopt automatic cleaning and automatic flash spray function to prevent blockage. Epson I3200-U1 heads, Max Printing Width: 1800mm, Max Resolution: 3200DPI, Max Printing Speed: 12Sqm/H

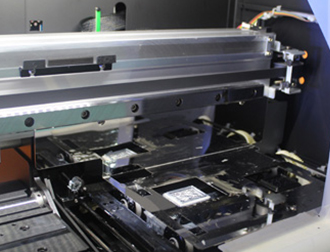

    • 02CAPPING SATAION

      SkyColor SC-4180UV Roll to Roll UV Printer is equipped with advanced intelligent nozzle cleaning and moisturizing device, providing safe and convenient nozzle cleaning and maintenance functions, making operation and maintenance more convenient. The working principle of the automatic ink cleaning function: the digital printing machine draws the ink through the nozzle of the ink pump in the ink stack to achieve the purpose of cleaning and moisturizing, preventing the nozzle from clogging.

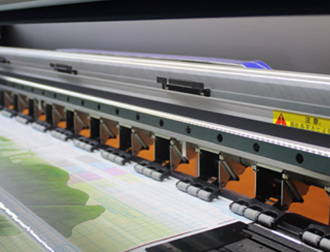

    • 03PRINTING HEAD CARRIAGE

      The height of the head carriage can be independently adjusted according to different thicknesses of media. The anti-scratch-paper function on both sides of the small frame can reduce the damage of the nozzle caused by the paper tilting.

    • 04HIGH-PRECISION PLATPORM

      The assembly precision of the machine printing platform is controlled within plus or minus 7.5 wires, which lays the foundation for high-precision and high-quality production. The overall honeycomb aluminum alloy platform is hard-oxidized on the surface and will not deform for a long time.

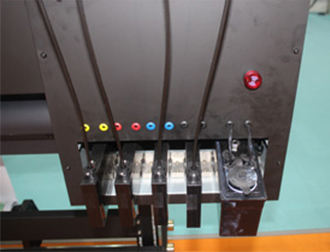

    • 05INK TANK

      SkyColor SC-4180UV Roll to Roll UV Printer use super-large-capacity ink tank with independent and continuous ink supply. The powerful continuous supply ink supply system provides support for the improvement of production efficiency, avoiding the frequent shortage of ink in production and the heavy work caused by back and forth inspection.

    • 06INTELLIENT SHORTAGE ALARM SYSTEM

      Intelligent ink shortage system reminding, reduces the tediousness of frequently checking the remaining ink, and promptly reminds to add ink to ensure the continuity of printing work.

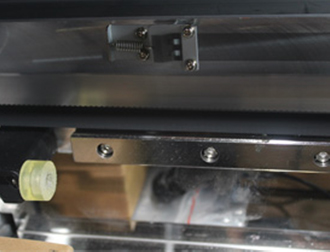

    • 07STABLE SKYCOLOR SELF DESIGN PRINTING SYSTEM

      The core components are made of high-quality industry accessories such as Japanese THK ultra-quiet linear guide rails, Japanese NSK bearings, German IGUS INK chain, LEADSHINE servo motor, etc. All of these ensure the accuracy of the machine and the stability of long-term work.

    • 08DOUBLE MOTOR POWER TAKING UP SYSTEM

      This taking up system can ensure that the left and right sides of the paper-receiving paper have the same pulling force; the rewinding is tidy and does not deviate.

    • 09INDUSTRIAL DESIGN

      The whole frame is welded with square steel, industrial grade design, the whole structure is strong and stable, which ensures that the equipment is stable and does not shake during the high-speed printing process.


Application

SkyColor SC-4180UV Roll to Roll UV Printer can be used in Advertising industry: signage, POP products, advertising products, exhibition props. Home construction: decorative glass, sliding door cabinets, ceilings, background curtain walls, environmental protection UV decorative panels, decorative lamps. Video products and decorative paintings: decorative oil paintings, leather products, 3D decorative paintings, photo frames, wedding images. Electronic appliances: home appliance panels, membrane switches, customized color shells. Gifts and packaging: customized gifts, stationery and toys, packaging products.
