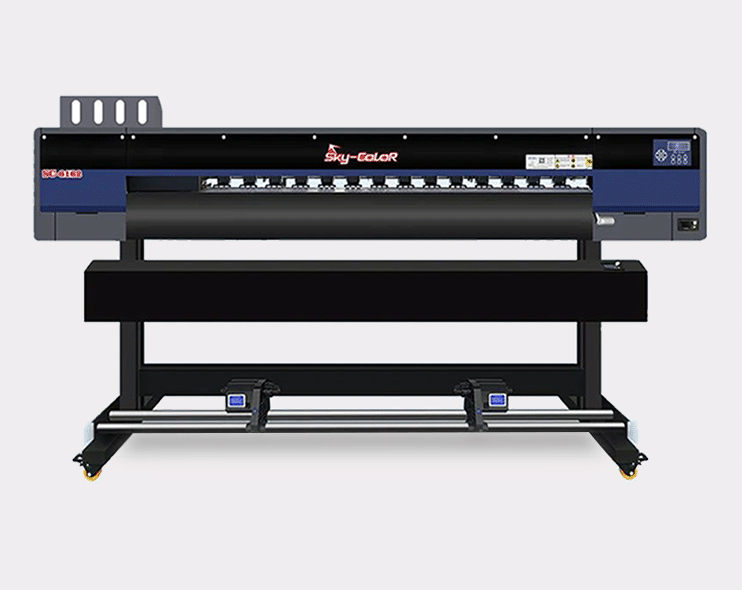

SC-6160(1 Head*1600mm)

Introduce

New SkyColor SC-6160 Eco Solvent Printer uses1 Epson I3200-A1/E1 Heads, Max Printing Width: 1600mm. Max Resolution: 3200DPI. Max Printing Speed: 3 pass: 26 Sqm/Hr.

Parameters

Model New SkyColor SC-6160
Print Head Type EPSON I3200-AI/E1 head
Printhead Quantity 1
Printing Speed

3pass 26m2/H

4pass 20m2/H

5pass 15m2/H

Max Resolution 3200DPI
Ink Type Water-Based Ink, Eco Solvent Ink
Ink Color C M Y K
Printhead Cleaning Automatic Cleaning, Automatic Flash and Moisturizing Function
Printing Media

Indoor Advertising Material, Transfer Paper, PP, Vinyl,

Flex Banner, Canvas Banner, etc.

System Configuration

Operating System: Win7 64bit, Win10 64bit

Interface: Giga-bit Ethernet Port

Heat System Font-middle-rear Three-stage Heating System
Computer Configuration

Hard Disk: More than 500G, ATI Mobility Radeon,

Memory 8G DDR4 above, Mainboard: Intel B85,

CPU:Inteli7 3.0GHZ above

Working Environment Temp.:15 -30°C, Humidity: 35-65%
Power Supply 50HZ/60HZ,110~ 220V, 10A
Printing Size 1600mm
Rip Software Maintop, FlexiPRINT, ONYX, etc.
Image Format JPG, TIF, BMP, PDF, etc.
Dimensions 2517x681x1250mm
Gross Weight 115KG

Products Video

Technical Data

    • 01 PRINT HEAD OF SKYCOLOR SC-6160 PRINTER EPSON ORIGINAL I3200-A1/E1

      SkyColor SC-6160 Eco Solvent Printer uses 1 Epson I3200-A1/E1 head. The max printing speed can be 26 sqm/h, It uses TFP thin film piezoelectric technology and 2.5PL variable dot ink drop function, accurately positioning the ink drop, the image color layer is richer and fuller, and the printing effect is more exquisite.

      Epson I3200-A1/E1 heads, Max Printing Width: 1600mm, Max Resolution: 3200DPI, Max Printing Speed: 3 Pass: 26 Sqm/H

      Epson i3200-A1 Printhead
      Epson i3200-E1 Printhead
    • 02SKYCOLOR SC-6160 ECO SOLVENT PRINTER CAPPING SATAION

      SkyColor SC-6160 Format Eco Solvent Printer equipped with advanced intelligent nozzle cleaning and moisturizing device, providing safe and convenient nozzle cleaning and maintenance functions, making operation and maintenance more convenient.

      ECO
      ECO SOLVENT PRINTER CAPPING SATAION

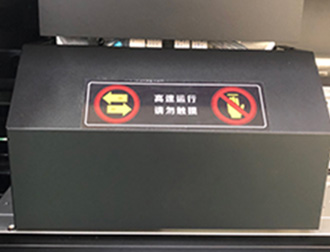

    • 03PRINTING CARRIAGE OF SKYCOLOR SC-6160 ECO SOLVENT PRINTER

      SkyColor SC-6160 Eco Solvent Printer Printing Carriage height can be independently adjusted according to different thicknesses of media. The anti-scratch-paper function on both sides of the small frame can reduce the damage of the nozzle caused by the paper tilting.

      Eco Solvent Printer Printing Carriage
      Eco Solvent Printer Printing Carriage
    • 04HIGH-PRECISION PLATPORM OF SKYCOLOR SC-6160 ECO SOLVENT PRINTER

      SkyColor SC-6160 Eco Solvent Printer platform is controlled within plus or minus 7.5 wires, which lays the foundation for high-precision and high-quality production. The overall honeycomb aluminum alloy platform is hard-oxidized on the surface and will not deform for a long time.

      American Pinch Rollers
      American Pinch Rollers
    • 05SKYCOLOR SC-6160 ECO SOLVENT PRINTER INK TANK

      SkyColor SC-6160 Eco Solvent Printer uses 4 super-large-capacity ink tank with independent and continuous ink supply. The powerful continuous ink supply system provides support for the improvement of production efficiency, avoiding the frequent shortage of ink in production and the heavy work caused by back and forth inspection.

      ink tank
      cmyk ink
    • 06STABLE SKYCOLOR SELF DESIGN PRINTING SYSTEM

      SkyColor SC-6160 Format Eco Solvent Printer components are made of high-quality industry accessories such as Japanese THK ultra-quiet linear guide rails, Japanese NSK bearings, German IGUS INK chain, LEADSHINE servo motor, etc. All of these ensure the accuracy of the machine and the stability of long-term work.

      Imported THK linear guide rail
      Imported THK linear guide rail

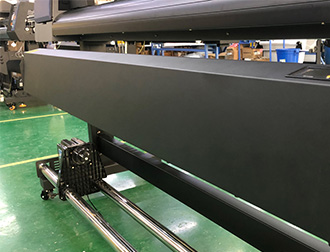

    • 07SKYCOLOR SC-6160 ECO SOLVENT PRINTER INTELLIGENT INFRARED DRY SYSTEM

      SkyColor SC-6160 Eco Solvent Printer synchronized with printing, energy saving and emission reduction, the temperature can be adjusted according to the actual situation during printing.

      Intelligent drying system
      Intelligent drying system

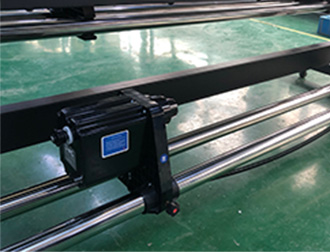

    • 08DOUBLE MOTOR POWER TAKING UP SYSTEM OF SKYCOLR SC-6160TS PRINTER

      SkyColor SC-6160 Eco Solvent Printer taking up system can ensure that the left and right sides of the paper-receiving paper have the same pulling force, rewinding is tidy and does not deviate.

      DOUBLE MOTOR POWER TAKING UP SYSTEM
      DOUBLE MOTOR POWER TAKING UP SYSTEM

Application

SkyColor SC-6160 Eco Solvent Printer can be Used for Indoor and Outdoor Advertising Printing, Car Stickers, Light Box Films, Oil Paintings, Silk Cloth, Building Materials, Home Furnishings, Sliding Door Soft-packing, Cellophane, Etc.
