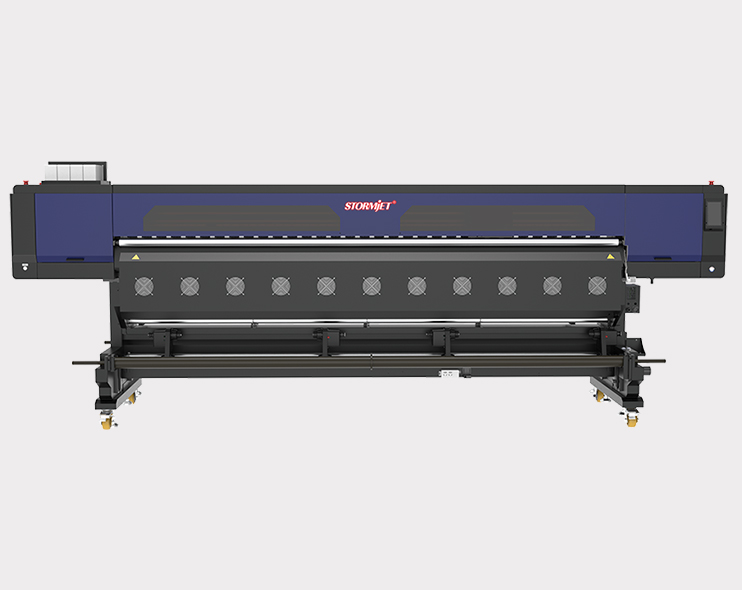

StormJet SJ-1324 Wide Format Eco Solvent Printer uses 4 Epson I3200-AI/E1 head, Max Printing Width: 3200mm. Max Resolution: 3200 DPI. Production Mode:79㎡/h, Standard Mode: 54㎡/h.
| Model | New StormJet SJ-1324 | |
| Print Head Type | EPSON I3200-AI/E1 head | |
| Printhead Quantity | 4 | |
| Printing Speed |
Production Mode: 79m2/H Standard Mode: 54m2/H |
|
| Max Resolution | 3200DPI | |
| Ink Type | Water-Based Ink, Eco Solvent Ink | |
| Ink Color | C M Y K | |
| Printing Size | 3200mm | |
| Printhead Cleaning | Automatic Cleaning, Automatic Flash and Moisturizing Function | |
| Printing Media |
Indoor Advertising Material, Transfer Paper, PP, Vinyl, Flex Banner, Canvas Banner, etc. |
|
| Computer Configuration |
Operating System: Win7 and above; GPU: ATI Mobility Radeon; Transmission Interface: Giga-bit Ethernet Port |
|
| Working Environment | Temp.:15 -30°C, Humidity: 35-65% | |
| Power Supply | 50HZ/60HZ,110~ 220V, 10A | |
| Rip Software | Maintop, FlexiPRINT, ONYX, etc. | |
| Image Format | JPG, TIF, BMP, PDF, etc. | |
| Dimensions |
Printer: 4785*1190*1729mm Packing: 5100*1120*1270mm |
|
| Weight |
Gross Weight: 990kg Net Weight: 890kg |
|
StormJet SJ-1324 Wide Format Eco Solvent Printer uses 4 Epson Original I3200-E1 heads. It uses TFP thin film piezoelectric technology and 2.5PL variable dot ink drop function, accurately positioning the ink drop, the image color layer is richer and fuller, and the printing effect is more exquisite. Epson I3200-AI/E1 heads, Max Printing Width: 3200mm, Max Resolution: 3200DPI, Max Printing Speed: 79 Sqm/H
StormJet SJ-1324 Wide Format Eco Solvent Printer is equipped with advanced intelligent nozzle cleaning and moisturizing device, providing safe and convenient nozzle cleaning and maintenance functions, making operation and maintenance more convenient.
The height of the head carriage can be independently adjusted according to different thicknesses of media. The anti-scratch-paper function on both sides of the head carriage can reduce the damage of the nozzle caused by the paper tilting.
The assembly precision of the machine printing platform is controlled within plus or minus 7.5 wires, which lays the foundation for high-precision and high-quality production. The overall honeycomb aluminum alloy platform is hard-oxidized on the surface and will not deform for a long time.

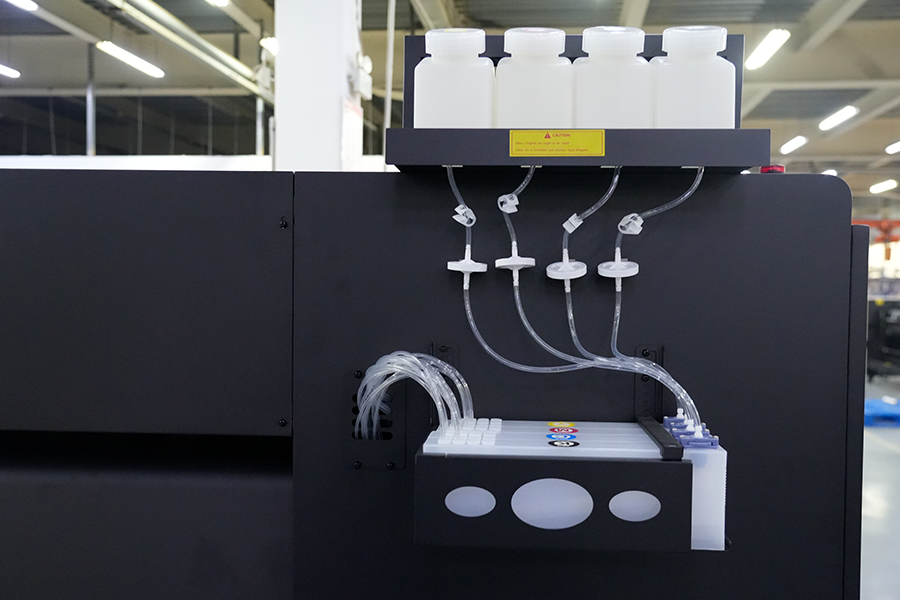

StormJet SJ-1324 Wide Format Eco Solvent Printer uses four 3L super-large-capacity ink tanks with independent and continuous ink supply. The powerful continuous ink supply system provides support for the improvement of production efficiency, avoiding the frequent shortage of ink in production and the heavy work caused by back and forth inspection.
The core components are made of high-quality industry accessories such as Japanese THK ultra-quiet linear guide rails, Japanese NSK bearings, German IGUS INK chain, LEADSHINE servo motor, etc. All of these ensure the accuracy of the machine and the stability of long-term work.
StormJet SJ-1324 Wide Format Eco Solvent Printer synchronized with printing, energy saving and emission reduction, the temperature can be adjusted according to different printing speed.

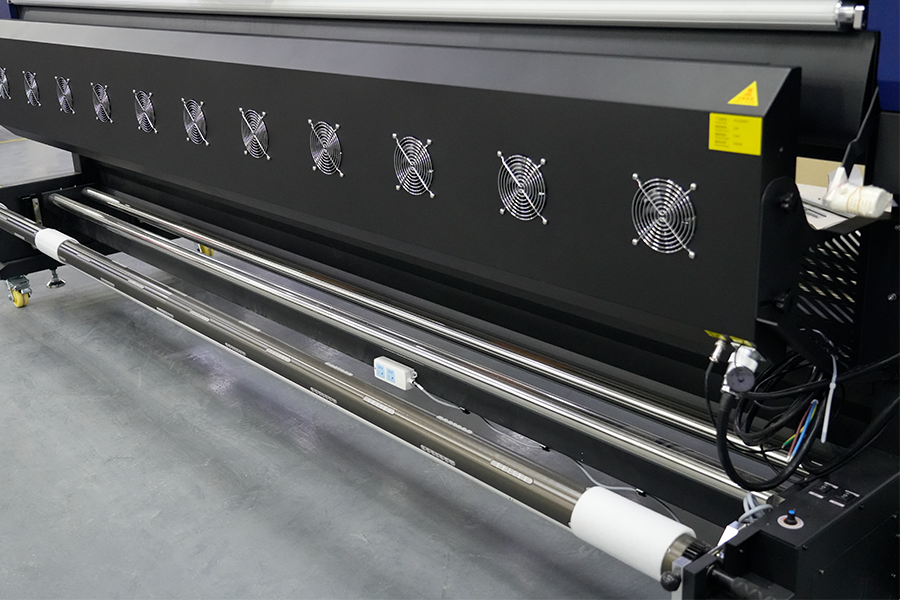

This taking up system can ensure that the left and right sides of the paper-receiving paper have the same pulling force; the rewinding is tidy and does not deviate.
StormJet SJ-1324 Wide Format Eco Solvent Printer can be used for indoor and outdoor advertising printing, car stickers, light box films, oil paintings, silk cloth, building materials, home furnishings, sliding door soft-packing, cellophane, etc.
