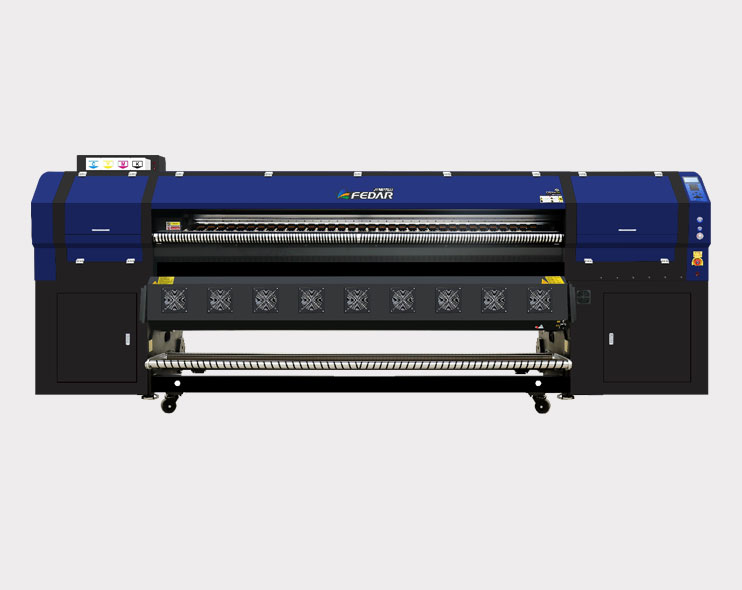

Fedar FD52615E Large Format Sublimation Printer uses 15 Epson Original I3200-A1 print heads. Max Printing Width: 1900mm. Max Resolution: 3200DPI. Max Printing Speed: 1PASS: 685m2/h.
| Model | FD52615E |
| Printhead | 15 Pcs EPSON I3200-A1 Printheads |
| Print Speed | 1PASS: 685 m2/h |
| Ink Type | Type: Sublimation Ink, Color: CMYK |
| Print Width | 2600mm |
| Print Media | Transfer Paper |
| Media Transmit | Pinch Roller Mode |
| Dyer | Extra Intelligent Fan Dryer |
| Moisture Mode | Full Seal Auto Moisture and Cleaning |
| RIP Software | Maintop, FlexiPRINT, ONYX, Neostampa and etc. Maintop 7.0(Standard Equipped) |
| Image Format | JPG,TIF, PDF, etc. |
| Working Environment | Temp.: 18°C-30°C, Humidity: 35%-65% |
| Machine Size | 4650*2685*1815mm |
EPSON I3200-A1 printhead has 3200 nozzles, variable drop ink technology, improves printing resolution, improves color restoration degree, up to four levels of gray print can be supported.
Capping station cleaning unit: Intelligent printhead cleaning and moisturizing device, with long-term moisturizing and automatic cleaning functions, making operation and maintenance more convenient.
Feeding & take-up system adopts industrial servo-drive reducer, which has high speed, high precision and more stable during feeding and taking up media.
It is easy and convenient to adjust the printhead height according to different media. And anti collision system installed on both sides of carriage, which automatic detect any force on carriage way to protect the printhead inside.
Standard with 15L bulk tank ink supply system, which ensures constant ink supplyand guarantees output quality. Ink shortage alarm system is equipped to remind operator to refill ink timely.
Japanese double THK mute guide rail, moving steadily, longer working life, and reducing the resistance and noise of carriage moving during the high speed printing.
Adopt pneumatic pinch rollers lifting structure design.
The new modelis equipped with 10,000-meter Feeding & take-up paper base, the 10,000-meter base paper can meet the printing demands for large quantities.
Clothing: Women's Clothing, Men's Clothing, Kids' Clothing, Sportswear, Swimwear, Scarf, Hat, Socks, etc.
Textile: Cushion, Bed Sheet, Quilt Cover, Sofa Cover.
Shoes & Bag: Leather Bag, Canvas Bag, Suitcase, Canvas Shoes, Slipper.
Household: Carpet, Curtain, Umbrella.
Advertising: Flag, Banner.
