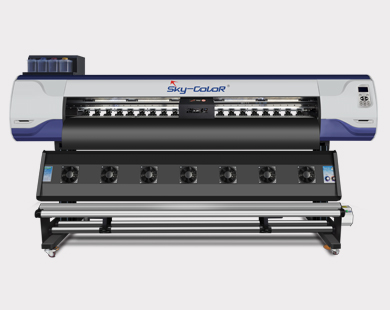

SC-3204 (4 Heads*3200mm)

Introduce

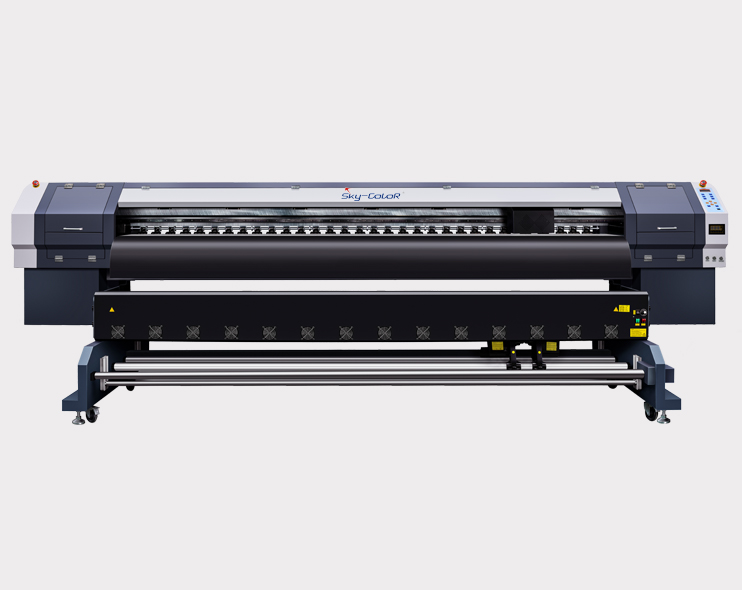

SkyColor SC-3204 3.2m Eco Solvent Printer uses 4 Epson Original I3200-A1/E1 Heads, Max Printing Width: 3200mm. Max Resolution: 3200DPI. Max Printing Speed: 139 Sqm/Hr (2pass ).

Parameters

 Model SkyColor SC-3204 Eco Solvent Printer
Printing Size 3200mm
Print Head Type 4 Original I3200-A1/E1 Heads
Max Resolution 3200DPI
Ink Color Double C M Y K
Ink Type Water-Based Ink, Eco Solvent Ink
Ink Supply Type Bulk Ink Supply System
RIP Software MAINTOP6.0, PHOTOPRINT19, ONYX 19
Interface Giga-bit Ethernet Port
Print File Format BMP, TIF, JPG, PDF Etc.
Drying System Extra Front Heating System
Optional Device Auto Feed & Take-up System
Color Management ICC Based; Density & Curves Adjustable
Power Supply 50HZ/60HZ,110~ 220V, 10A
Working Environment Temp.:15 -30°C, Humidity: 35-65%
Package Dimension (L*W*H) 4780*1100*1650mm
Gross. Weight 990KGS
Printing Speed 2pass 139Sqm/H
3pass 108Sqm/H
4pass  79 Sqm/H

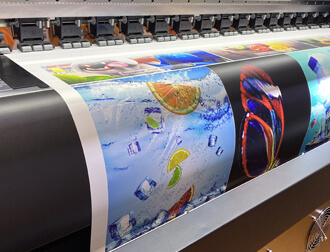

Product Application

Technical Data

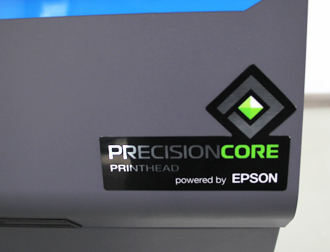

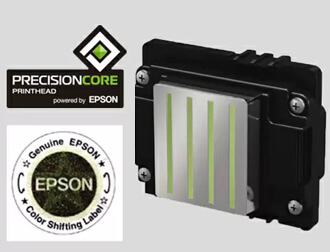

    • 01 PRINT HEAD OF SKYCOLOR SC-3204 PRINTER EPSON ORIGINAL I3200-A1/E1

      SkyColor SC-3204 Eco Solvent Printer uses 4 Epson I3200-A1/E1 head. The max printing speed can be 139 sqm/h, It uses TFP thin film piezoelectric technology and 2.5PL variable dot ink drop function, accurately positioning the ink drop, the image color layer is richer and fuller, and the printing effect is more exquisite.

      Epson I3200-A1/E1 heads, Max Printing Width: 3200mm, Max Resolution: 3200DPI, Max Printing Speed: 139 Sqm/H

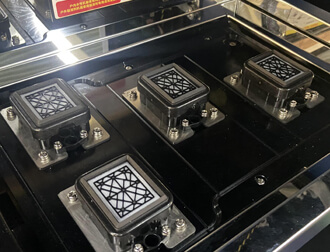

    • 02SKYCOLOR SC-3204 ECO SOLVENT PRINTER CAPPING SATAION

      SkyColor SC-3204 Format Eco Solvent Printer equipped with advanced intelligent nozzle cleaning and moisturizing device, providing safe and convenient nozzle cleaning and maintenance functions, making operation and maintenance more convenient.

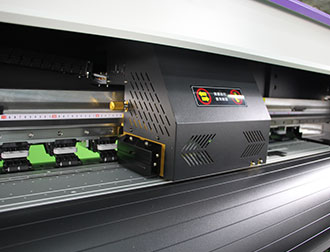

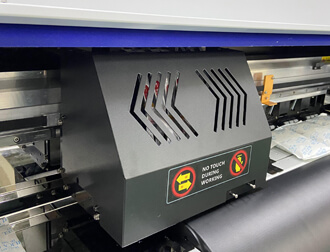

    • 03PRINTING CARRIAGE OF SKYCOLOR SC-3204 ECO SOLVENT PRINTER

      SkyColor SC-3204 Eco Solvent Printer Printing Carriage height can be independently adjusted according to different thicknesses of media. The anti-scratch-paper function on both sides of the small frame can reduce the damage of the nozzle caused by the paper tilting.

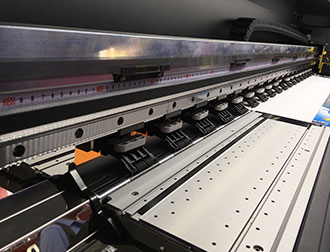

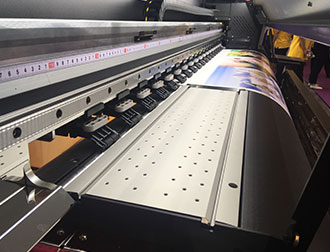

    • 04HIGH-PRECISION PLATPORM OF SKYCOLOR SC-3204 ECO SOLVENT PRINTER

      SkyColor SC-3204 Eco Solvent Printer platform is controlled within plus or minus 7.5 wires, which lays the foundation for high-precision and high-quality production. The overall honeycomb aluminum alloy platform is hard-oxidized on the surface and will not deform for a long time.

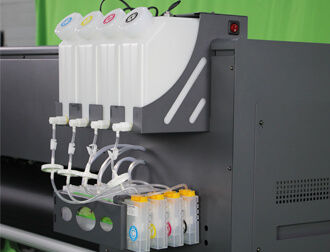

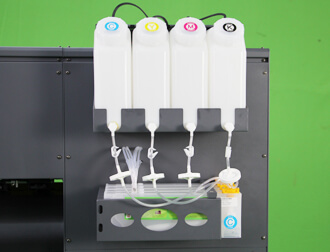

    • 05SKYCOLOR SC-3204 ECO SOLVENT PRINTER INK TANK

      SkyColor SC-3204 Eco Solvent Printer uses 4 super-large-capacity ink tank with independent and continuous ink supply. The powerful continuous ink supply system provides support for the improvement of production efficiency, avoiding the frequent shortage of ink in production and the heavy work caused by back and forth inspection.

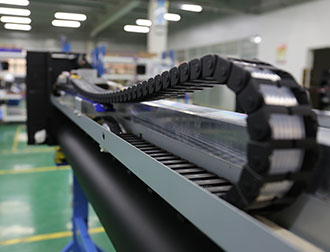

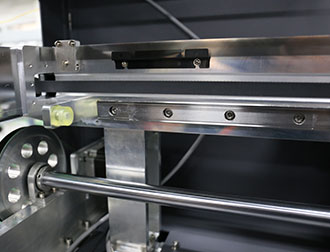

    • 06STABLE SKYCOLOR SELF DESIGN PRINTING SYSTEM

      SkyColor SC-3204 Format Eco Solvent Printer components are made of high-quality industry accessories such as Japanese THK ultra-quiet linear guide rails, Japanese NSK bearings, German IGUS INK chain, LEADSHINE servo motor, etc. All of these ensure the accuracy of the machine and the stability of long-term work.

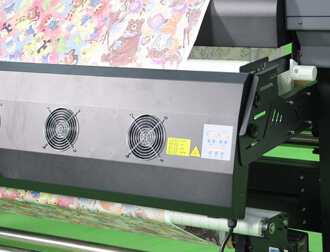

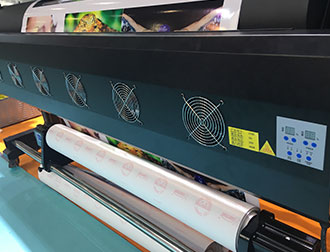

    • 07SKYCOLORSC-3204 ECO SOLVENT PRINTER INTELLIGENT INFRARED DRY SYSTEM

      SkyColor SC-3204 Eco Solvent Printer synchronized with printing, energy saving and emission reduction, the temperature can be adjusted according to the actual situation during printing.

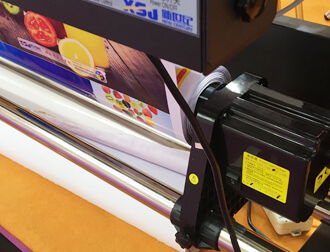

    • 08DOUBLE MOTOR POWER TAKING UP SYSTEM OF SKYCOLR SC-3204 PRINTER

      SkyColor SC-3204 Eco Solvent Printer taking up system can ensure that the left and right sides of the paper-receiving paper have the same pulling force, rewinding is tidy and does not deviate.

Application

SkyColor SC-3204 Eco Solvent Printer can be Used for Indoor and Outdoor Advertising Printing, Car Stickers, Light Box Films, Oil Paintings, Silk Cloth, Building Materials, Home Furnishings, Sliding Door Soft-packing, Cellophane, Etc.
