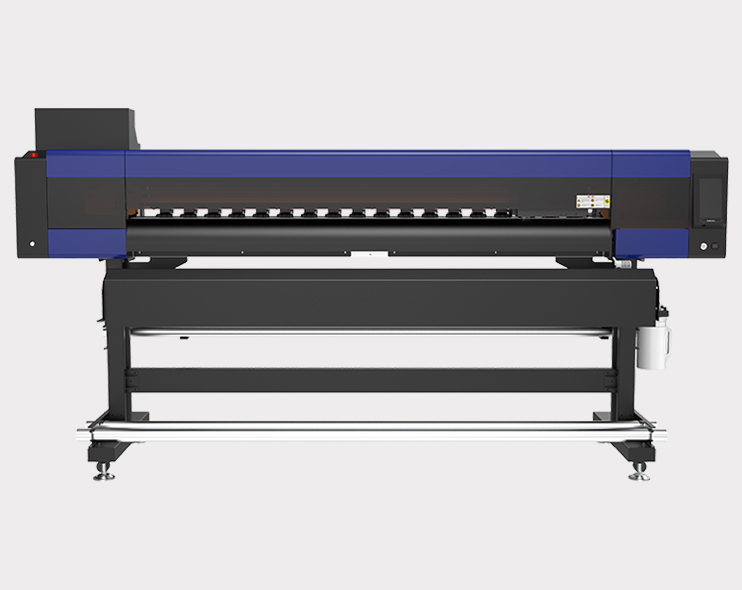

SkyColor SC-1181/1182 Eco Solvent Printer uses 1/2 Epson I3200-A1/E1 heads, Max Printing Width: 1800mm. Max Production Mode: 40㎡/h.
| Model | SC-1181/SC-1182 | |
| Printhead Quantity | 1/2 | |
| Printhead Type | EPSON I3200-A1/E1 Printhead | |
| Printhead Cleaning | Automatic Cleaning, Automatic Flash Spray Moisturizing Function | |
| Print Speed | SC-1181 Production Mode: 20㎡/h , Standard Mode: 15㎡/h SC-1182 Production Mode: 40㎡/h Standard Mode: 30㎡/h | |
| Printing Width | 1800mm | |
| Ink Type | Water-Based Ink, Eco Solvent Ink | |
| Color | C M Y K | |
| Printing Media | Indoor Advertising Material, PP, Vinyl, Flex Banner, Canvas Banner, etc. | |
| RIP Software | Maintop, Photoprint, Riin, ONYx, etc. | |
| Interface | Giga-bit Ethernet Port | |
| Image Format | BMP, TIF, JPG, PDF, etc. | |
| Computer Configuration | Operating System: Win7 and above , GPU: ATI Mobility Radeon, Transmission Interface: Giga-bit Ethernet Port , CPU: Intel Core i7 3.0HZ above , RAM: 8G DDR4 or above , Hard Disk: 500G or more | |
| Standard Configuration | Heating System: External Drying System Feeding and Take-up System: Automatic Take-up System | |
| Power Supply | 50/60HZ, Input Voltage: 220V Machine Printing Power: 2kW Dryer:2.4KW | |
| Working Environment | Temp.:15 -30°C, Humidity: 35-65% | |
| Machine Size | Dimension: 2800*760*1480mm Packing: 3148*740*750mm | |
| Weight | Gross Weight: 235KG Net Weight: 180KG | |
SkyColor SC-1181/1182 Eco Solvent Printer uses 1/2 Epson I3200-A1/E1 heads. It uses TFP thin film piezoelectric technology and 2.5PL variable dot ink drop function, accurately positioning the ink drop, the image color layer is richer and fuller, and the printing effect is more exquisite.
SkyColor SC-1181/1182 Format Eco Solvent Printer equipped with advanced intelligent nozzle cleaning and moisturizing device, providing safe and convenient nozzle cleaning and maintenance functions, making operation and maintenance more convenient.

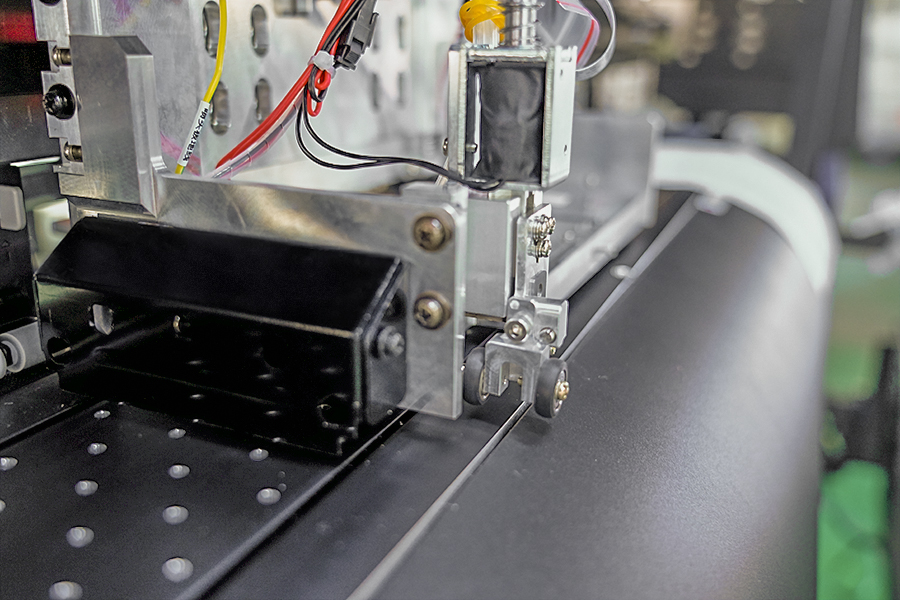

SkyColor SC-1181/1182 Eco Solvent Printer Printing Carriage height can be independently adjusted according to different thicknesses of media. The anti-scratch-paper function on both sides of the small frame can reduce the damage of the nozzle caused by the paper tilting.
SkyColor SC-1181/1182 Eco Solvent Printer platform is controlled within plus or minus 7.5 wires, which lays the foundation for high-precision and high-quality production. The overall honeycomb aluminum alloy platform is hard-oxidized on the surface and will not deform for a long time.
SkyColor SC-1181/1182 Eco Solvent Printer uses 4 super-large-capacity ink tank with independent and continuous ink supply. The powerful continuous ink supply system provides support for the improvement of production efficiency, avoiding the frequent shortage of ink in production and the heavy work caused by back and forth inspection.
SkyColor SC-1181/1182 Format Eco Solvent Printer components are made of high-quality industry accessories such as Japanese THK ultra-quiet linear guide rails, Japanese NSK bearings, German IGUS INK chain, LEADSHINE servo motor, etc. All of these ensure the accuracy of the machine and the stability of long-term work.
SkyColor SC-1181/1182 Eco Solvent Printer synchronized with printing, energy saving and emission reduction, the temperature can be adjusted according to the actual situation during printing.

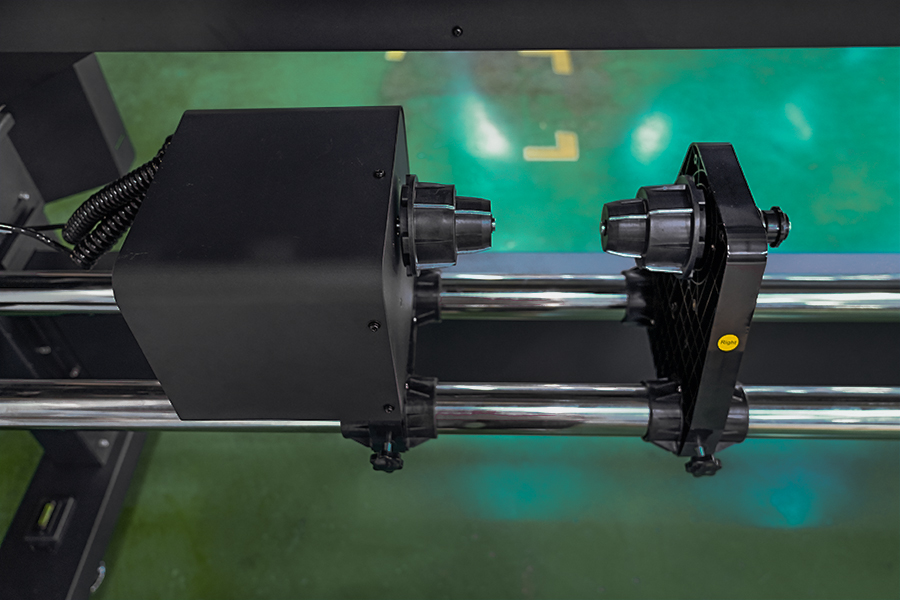

SkyColor SC-1181/1182 Eco Solvent Printer taking up system can ensure that the left and right sides of the paper-receiving paper have the same pulling force, rewinding is tidy and does not deviate.
SkyColor SC-1181/1182 Eco Solvent Printer can be Used for Indoor and Outdoor Advertising Printing, Car Stickers, Light Box Films, Oil Paintings, Silk Cloth, Building Materials, Home Furnishings, Sliding Door Soft-packing, Cellophane, Etc.
