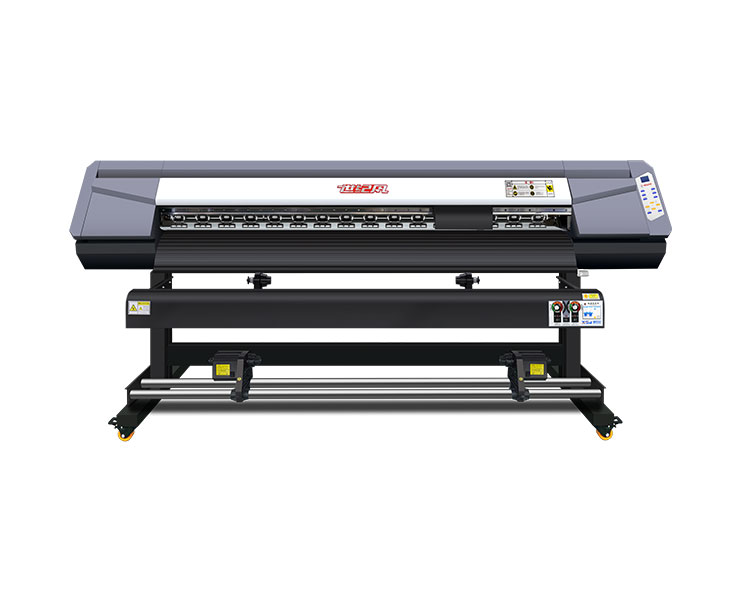

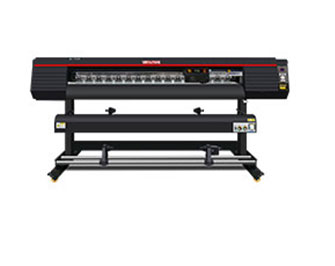

SJ-3180TS (2 Heads*1800mm)

Introduce

Stormjet SJ-3180TS 1800mm Eco Solvent Wide Format Printer uses Double Epson I3200-AI/E1 heads, Max Printing Width: 1800mm, Max Resolution: 3200DPI, Max Printing Speed: 80 Sqm/H.

Parameters

Model StormJet SJ-3180TS
Printing Size 1800mm
Print Head Type Two Epson I3200-A1/E1 heads
Print Speed 2pass 80 Sqm/H
3pass 55 Sqm/H
4pass 40 Sqm/H
6pass 30 Sqm/H
Max Resolution 3200DPI
Ink Color C M Y K
Ink Type Water-Based Ink, Eco Solvent Ink
Ink Supply Type Bulk Ink Supply System
RIP Software MAINTOP6.0, PHOTOPRINT19, ONYX 19
Interface Giga-bit Ethernet Port
Print File Format BMP, TIF, JPG, PDF Etc.
Drying System Extra Front Heating System
Optional Device Intelligent Dryer, Auto Feeding and Take-up System, Anti Collision System
Color Management ICC Based; Density & Curves Adjustable
Power Supply 50HZ/60HZ,110~ 220V, 10A
Working Environment Temp.:15 -30°C, Humidity: 35-65%
Package Dimension (L*W*H) 2820*856*1515mm
Gross. Weight 250KGS

Product Application

Technical Data

    • 01PRINT HEAD

      StormJet SJ-3180TS Wide Format Eco Solvent Printer uses Two Epson Original I3200-E1 heads. The printing speed can be more than 80 Sqm/h, It uses TFP thin film piezoelectric technology and has 2.5PL variable dot ink drop function, accurately positioning the ink drop, the image color layer is richer and fuller, and the printing effect is more exquisite.

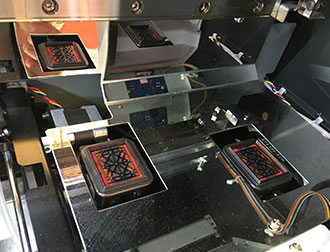

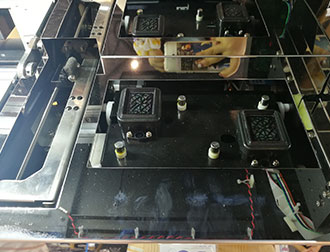

    • 02CAPPING STATION

      StormJet SJ-3180TS Wide Format Eco Solvent Printer equipped with advanced intelligent nozzle cleaning and moisturizing device, providing safe and convenient nozzle cleaning and maintenance functions, making operation and maintenance more convenient.

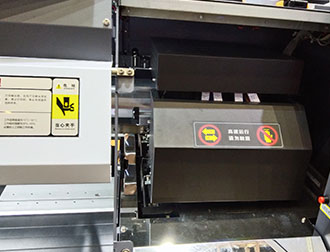

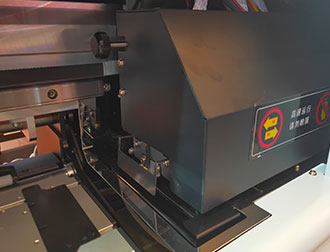

    • 03PRINTING CARRIAGE

      The height of the head carriage can be independently adjusted according to different thicknesses of media. The anti-scratch-paper function on both sides of the small frame can reduce the damage of the nozzle caused by the paper tilting.

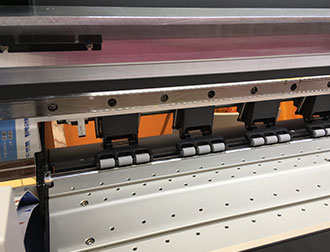

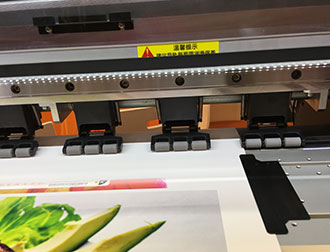

    • 04HIGH-PRECISION PLATFORM

      The assembly precision of the machine printing platform is controlled within plus or minus 7.5 wires, which lays the foundation for high-precision and high-quality production. The overall honeycomb aluminum alloy platform is hard-oxidized on the surface and will not deform for a long time.

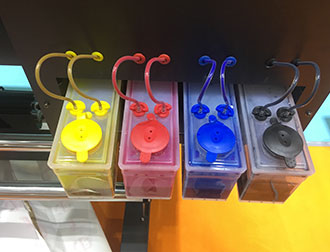

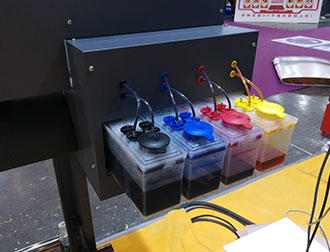

    • 05INK TANK

      StormJet SJ-3180TS Wide Format Eco Solvent Printer uses four 3L super-large-capacity ink tank with independent and continuous ink supply. The powerful continuous ink supply system provides support for the improvement of production efficiency, avoiding the frequent shortage of ink in production and the heavy work caused by back and forth inspection.

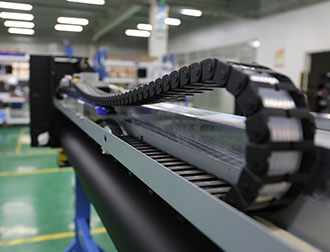

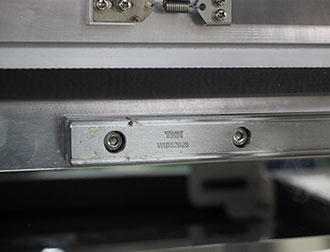

    • 06STABLE STOMJET SELF DESIGN PRINTING SYSTEM

      The core components are made of high-quality industry accessories such as Japanese THK ultra-quiet linear guide rails, Japanese NSK bearings, German IGUS INK chain, LEADSHINE servo motor, etc. All of these ensure the accuracy of the machine and the stability of long-term work.

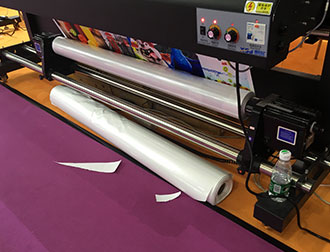

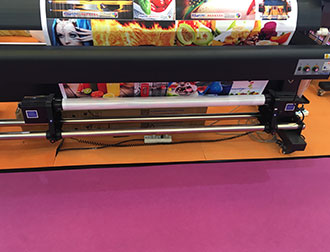

    • 07DOUBLE MOTOR POWER TAKING UP SYSTEM

      This taking up system can ensure that the left and right sides of the paper-receiving paper have the same pulling force; the rewinding is tidy and does not deviate.

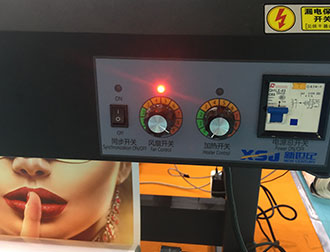

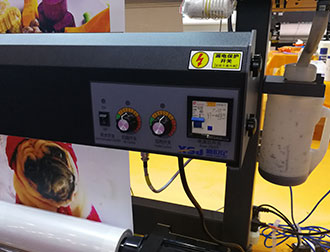

    • 08 INTELLIGENT INFRARED DRY SYSTEM

      StormJet SJ-7160TS Wide Format Eco Solvent Printer synchronized with printing, energy saving and emission reduction, the temperature can be adjusted according to the actual situation during printing.

Application

StormJet SJ-3180TS Wide Format Eco Solvent Printer can be used indoor and outdoor advertising printing, car stickers, light box films, oil paintings, silk cloth, building materials, home furnishings, sliding door soft-packing, cellophane, etc.
