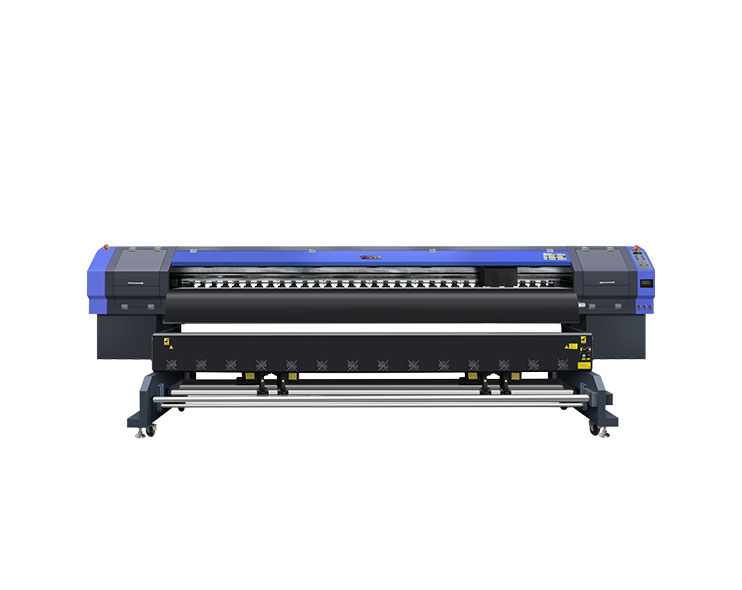

SJ-320TS (2/4 Heads*3200mm)

Introduce

StormJet SJ-320TS Wide Format Eco Solvent Printer uses Epson I3200-E1 heads, Max Printing Width: 3200mm. Max Resolution: 3200DPI. Max Printing Speed: 2pass: 124 Sqm/Hr.

Parameters

Model StormJet SJ-320TS Wide Format Eco Solvent Printer
Printing Size 3200mm
Print Head Type Two Original I3200-E1 heads Three Original I3200-E1 heads
Printing Speed 2pass 80Sqm/H 2pass 124Sqm/H
4pass 55Sqm/H 3pass 85Sqm/H
6pass 42Sqm/H 4pass 63Sqm/H
Max Resolution 1440DPI or 3200DPI
Ink Color Double C M Y K
Ink Type Water-Based Ink, Eco Solvent Ink
Ink Supply Type Bulk Ink Supply System
RIP Software MAINTOP6.0, PHOTOPRINT19, ONYX 19
Interface Giga-bit Ethernet Port
Print File Format BMP, TIF, JPG, PDF Etc.
Drying System Extra Front Heating System
Optional Device Intelligent Dryer, Auto Feeding and Take-up System, Anti Collision System
Color Management ICC Based; Density & Curves Adjustable
Power Supply 50HZ/60HZ,110~ 220V, 10A
Working Environment Temp.:15 -30°C, Humidity: 35-65%
Package Dimension (L*W*H) 4680x1130x1490mm
Gross. Weight 400KGS

Products Video

Technical Data

    • 01PRINT HEAD

      StormJet SJ-320TSLarge Format Eco Solvent Printer uses Epson I3200-E1 heads. The printing speed can be more than 80sqm/h, It uses TFP thin film piezoelectric technology and 2.5PL variable dot ink drop function, accurately positioning the ink drop, the image color layer is richer and fuller, and the printing effect is more exquisite. The Epson heads adopt automatic cleaning and automatic flash spray function to prevent blockage.

      Epson I3200-E1 heads, Max Printing Width: 3200mm, Max Resolution: 3200DPI, Max Printing Speed: 124Sqm/H

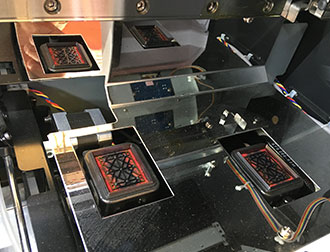

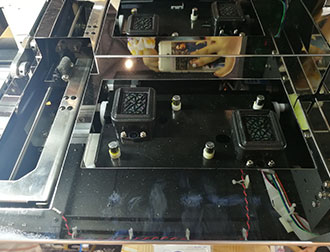

    • 02CAPPING SATAION

      StormJet SJ-320TSLarge Format Eco Solvent Printer is equipped with advanced intelligent nozzle cleaning and moisturizing device, providing safe and convenient nozzle cleaning and maintenance functions, making operation and maintenance more convenient. The working principle of the automatic ink cleaning function: the digital printing machine draws the ink through the nozzle of the ink pump in the ink stack to achieve the purpose of cleaning and moisturizing, preventing the nozzle from clogging.

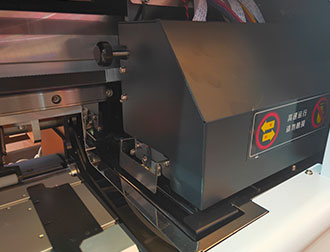

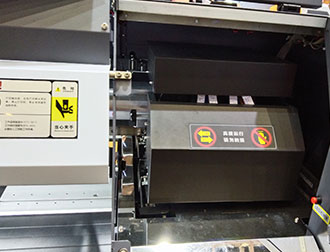

    • 03 PRINTING CARRIAGE

      The height of the head carriage can be independently adjusted according to different thicknesses of media. The anti-scratch-paper function on both sides of the small frame can reduce the damage of the nozzle caused by the paper tilting.

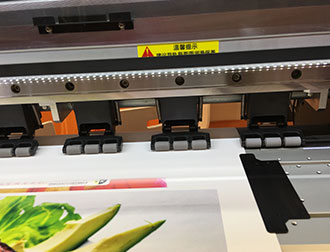

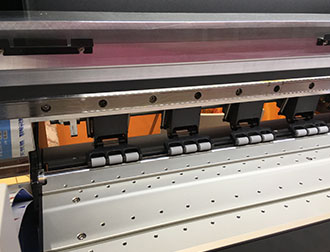

    • 04HIGH-PRECISION PLATPORM

      The assembly precision of the machine printing platform is controlled within plus or minus 7.5 wires, which lays the foundation for high-precision and high-quality production. The overall honeycomb aluminum alloy platform is hard-oxidized on the surface and will not deform for a long time.

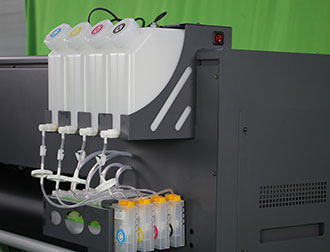

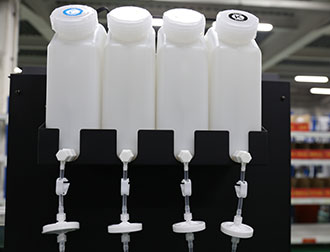

    • 05INK TANK

      StormJet SJ-320TSLarge Format Eco Solvent Printer uses four 3L super-large-capacity ink tank with independent and continuous ink supply. The powerful continuous ink supply system provides support for the improvement of production efficiency, avoiding the frequent shortage of ink in production and the heavy work caused by back and forth inspection.

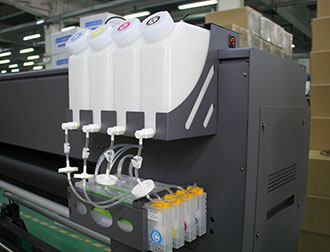

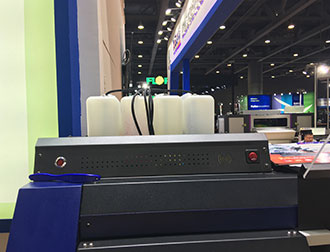

    • 06INTELLIENT INK SHORTAGE ALARM SYSTEM

      Intelligent ink shortage alarm system reduces the tediousness of frequently checking the remaining ink, and promptly reminds to add ink to ensure the continuity of printing work.

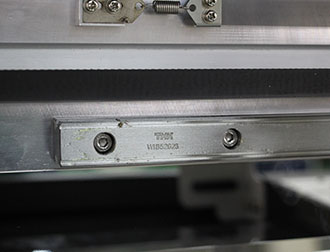

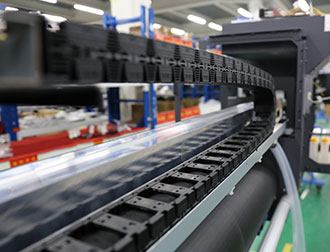

    • 07STABLE STORMJET SELF DESIGN PRINTING SYSTEM

      The core components are made of high-quality industry accessories such as Japanese THK ultra-quiet linear guide rails, Japanese NSK bearings, German IGUS INK chain, LEADSHINE servo and step motor, etc. All of these ensure the accuracy of the machine and the stability of long-term work.

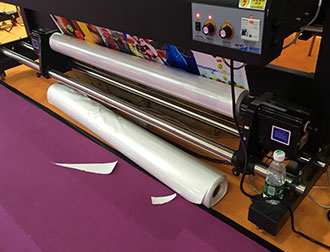

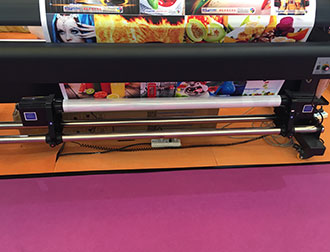

    • 08DOUBLE MOTOR POWER TAKING UP SYSTEM

      This taking up system can ensure that the left and right sides of the paper-receiving paper have the same pulling force; the rewinding is tidy and does not deviate.

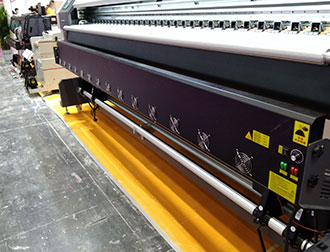

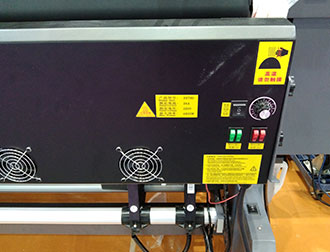

    • 09INTELLIGENT INFRARED DRY SYSTEM

      StormJet SJ-320TSWide Format Eco Solvent Printer synchronized with printing, energy saving and emission reduction, the temperature can be the temperature can be adjusted according to different printing speed.

Application

StormJet SJ-320TS Large Format Eco Solvent Printer can be used for indoor and outdoor advertising printing, car stickers, light box films, oil paintings, silk cloth, building materials, home furnishings, sliding door soft-packing, cellophane, etc.
