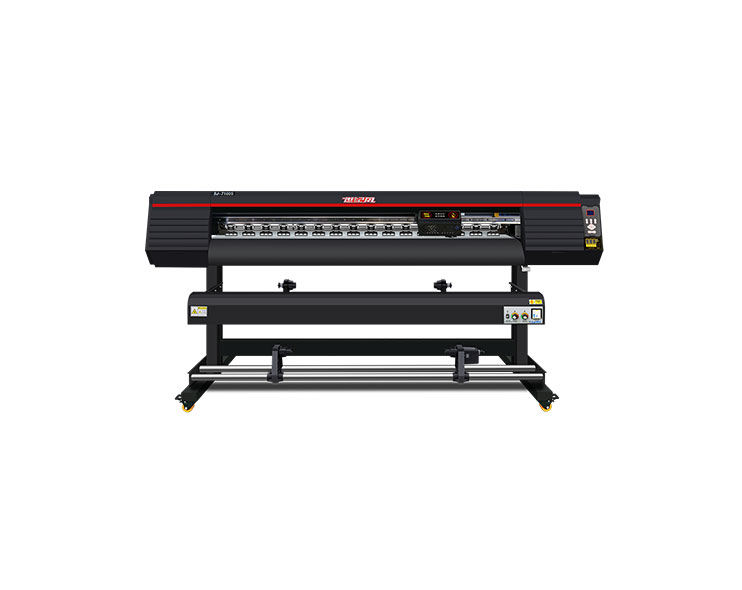

SJ-7160S (1 Head*1600mm)

Introduce

StormJet SJ-716OS Wide Format Eco Solvent Printer uses 1 Epson I3200-AI/E1 head, Max Printing Width: 1600mm. Max Resolution: 3200DPI. Max Printing Speed: 3pass: 27Sqm/Hr.

Parameters

Model New StormJet SJ-7160S
Print Head Type EPSON I3200-AI/E1 head
Printhead Quantity 1
Printing Speed

3pass 27m2/H

4pass 20m2/H

6pass 16m2/H

Max Resolution 3200DPI
Ink Type Water-Based Ink, Eco Solvent Ink
Ink Color C M Y K
Printhead Cleaning Automatic Cleaning, Automatic Flash and Moisturizing Function
Printing Media

Indoor Advertising Material, Transfer Paper, PP, Vinyl,

Flex Banner, Canvas Banner, etc.

System Configuration

Operating System: Win7 64bit, Win10 64bit

Interface: Giga-bit Ethernet Port

Heat System Font-middle-rear Three-stage Heating System
Dimensions 2570x660x1276mm
Computer Configuration

Hard Disk: More than 500G, ATI Mobility Radeon,

Memory 8G DDR4 above, Mainboard: Intel B85,

CPU:Inteli7 3.0GHZ above

Working Environment Temp.:15 -30°C, Humidity: 35-65%
Power Supply 50HZ/60HZ,110~ 220V, 10A
Printing Size 1600mm
Rip Software Maintop, FlexiPRINT, ONYX, etc.
Image Format JPG, TIF, BMP, PDF, etc.
Dimensions 2566x662x1302mm
Gross Weight 240KG

Product Application

Technical Data

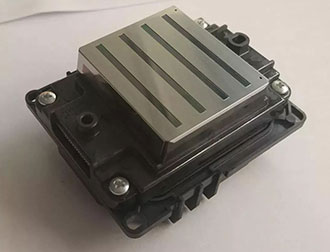

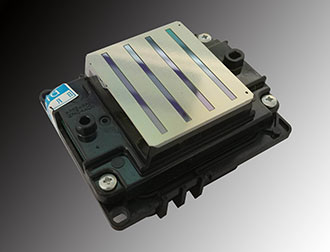

    • 01PRINT HEAD

      StormJet SJ-7160S Wide Format Eco Solvent Printer uses 1 Epson Original I3200-E1 heads. It uses TFP thin film piezoelectric technology and 2.5PL variable dot ink drop function, accurately positioning the ink drop, the image color layer is richer and fuller, and the printing effect is more exquisite. Epson I3200-AI/E1 heads, Max Printing Width: 1600mm, Max Resolution: 3200DPI, Max Printing Speed: 80 Sqm/H

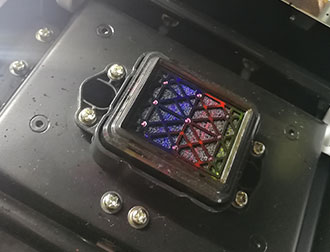

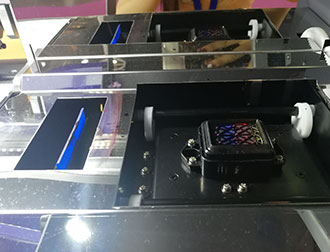

    • 02CAPPING SATAION

      StormJet SJ-7160S Wide Format Eco Solvent Printer is equipped with advanced intelligent nozzle cleaning and moisturizing device, providing safe and convenient nozzle cleaning and maintenance functions, making operation and maintenance more convenient.

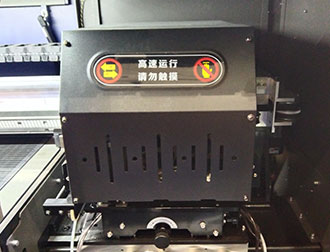

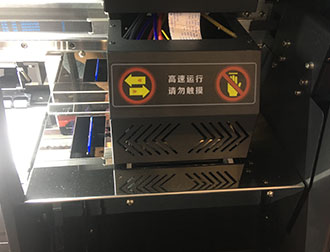

    • 03AUTO-STOP PRINTING CARRIAGE

      The height of the head carriage can be independently adjusted according to different thicknesses of media. The anti-scratch-paper function on both sides of the head carriage can reduce the damage of the nozzle caused by the paper tilting.

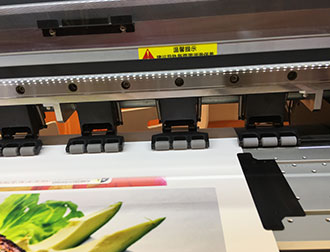

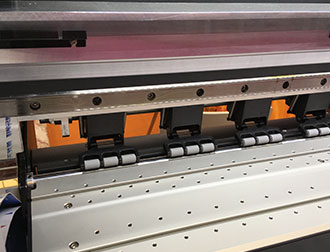

    • 04HIGH-PRECISION PLATPORM

      The assembly precision of the machine printing platform is controlled within plus or minus 7.5 wires, which lays the foundation for high-precision and high-quality production. The overall honeycomb aluminum alloy platform is hard-oxidized on the surface and will not deform for a long time.

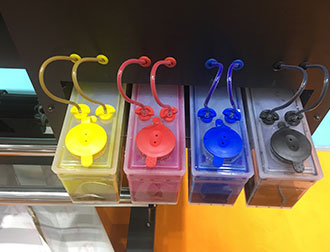

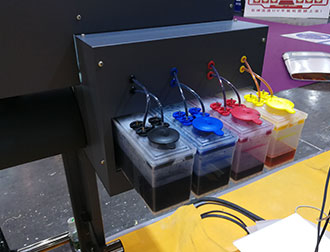

    • 05INK TANK

      StormJet SJ-7160S Wide Format Eco Solvent Printer uses four 3L super-large-capacity ink tanks with independent and continuous ink supply. The powerful continuous ink supply system provides support for the improvement of production efficiency, avoiding the frequent shortage of ink in production and the heavy work caused by back and forth inspection.

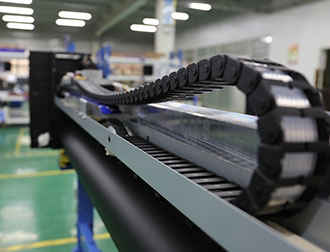

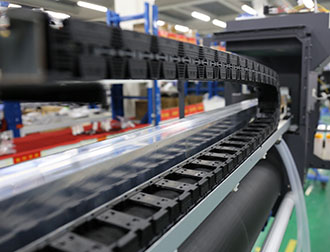

    • 06STABLE STOMJET SELF DESIGN PRINTING SYSTEM

      The core components are made of high-quality industry accessories such as Japanese THK ultra-quiet linear guide rails, Japanese NSK bearings, German IGUS INK chain, LEADSHINE servo motor, etc. All of these ensure the accuracy of the machine and the stability of long-term work.

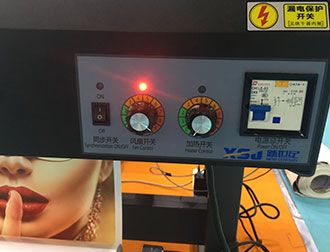

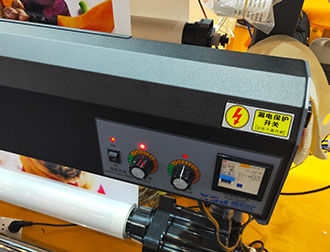

    • 07INTELLIGENT INFRARED DRY SYSTEM

      StormJet SJ-7160S Wide Format Eco Solvent Printer synchronized with printing, energy saving and emission reduction, the temperature can be adjusted according to different printing speed.

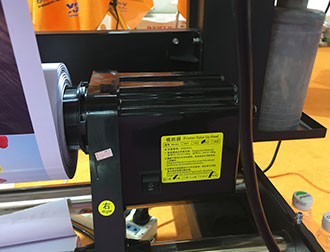

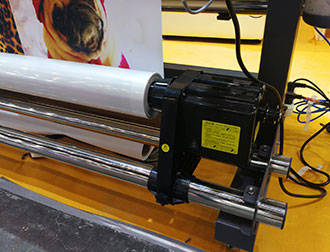

    • 08HIGH POWER MOTOR TAKING UP SYSTEM

      This taking up system can ensure that the left and right sides of the paper-receiving paper have the same pulling force; the rewinding is tidy and does not deviate.

Application

StormJet SJ-7160S Wide Format Eco Solvent Printer can be used for indoor and outdoor advertising printing, car stickers, light box films, oil paintings, silk cloth, building materials, home furnishings, sliding door soft-packing, cellophane, etc.
