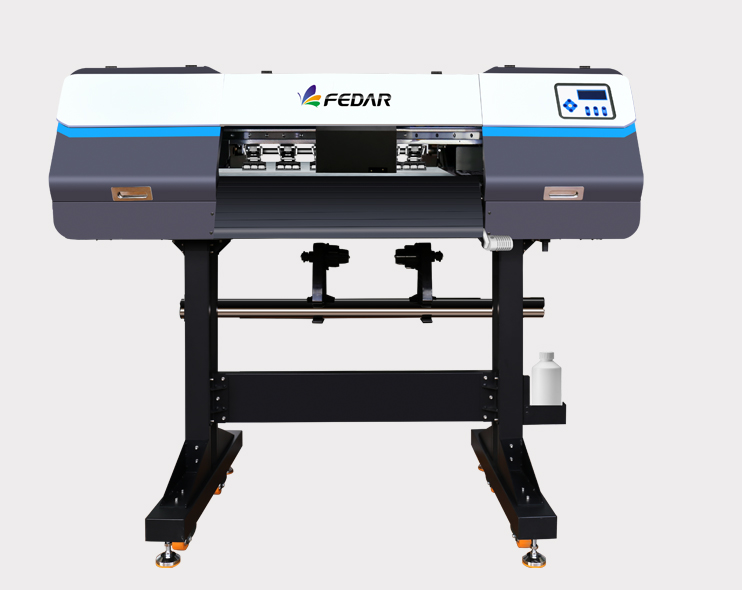

FD70-2 60cm DTF Printer

Introduce

Fedar FD70-2 DTF Printer uses double Epson Original I3200-A1 Print Head. Max Printing Width: 600mm. Max Resolution: 3200DPI. Max Production Capacity: 8 Sqm/hr

Parameters

Model Fedar FD70-2 DTF Printer
Printhead 2 EPSON Original I3200-A1
Printing Size 600mm
Printing Speed 6 PASS: 8m2/h
8 PASS: 6m2/h
Print Color C M Y K + W
Ink Type Pigment Ink
RIP Software Maintop, FlexiPRINT
Transmit Port Ethernet
Print Media PET Film
Image Format JPG, TIF, PDF, etc.
System Configuration WIN7/WIN10, HARD DISK: 500G or more, GPU: ATl Discrete GPU Memory: 8G or more, CPU: intel i5 Processor
Working Environment Temp.:18℃~30℃ Humidity:35%~65%
Feeding Method Roll to Roll, Leaf
Power Supply 220V, 50HZ/60HZ, 10A
Dimension (L*W*H) 1760*1000*750mm
Gross Weight 210KG

Product Application

Technical Data

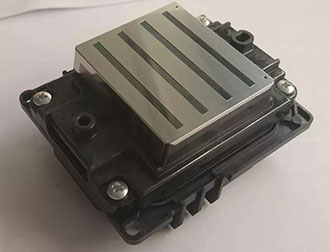

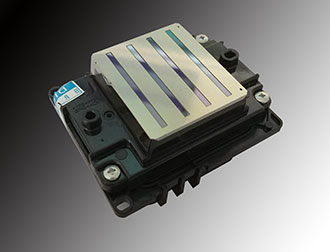

    • 01PRINT HEAD

      Fedar FD70-2 Digital Film Transfer Printer uses double Epson Original I3200-A1 printing heads. Its nozzle has 4 pairs of nozzle holes, a total of 8 columns, each column has 400 nozzle holes, that is totally including 3200 nozzle holes, max resolution: 3200DPI. The printing speed can be more than 40㎡/h, It uses TFP thin film piezoelectric technology and 2.5PL variable dot ink drop function, accurately positioning the ink drop, the image color layer is richer and fuller, and the printing effect is more exquisite. The Epson3200 head adopts automatic cleaning and automatic flash spray function to prevent blockage.

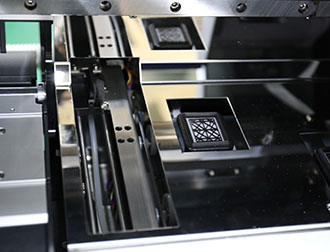

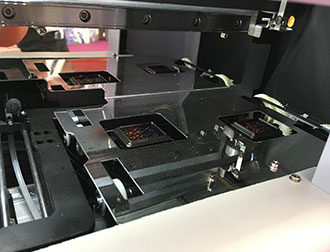

    • 02CAPPING SATAION

      FD70-2 Digital Film Transfer Printer equipped with advanced intelligent nozzle cleaning and moisturizing device, providing safe and convenient nozzle cleaning and maintenance functions, making operation and maintenance more convenient. The working principle of the automatic ink cleaning function: the digital printing machine draws the ink through the nozzle of the ink pump in the ink stack to achieve the purpose of cleaning and moisturizing, preventing the nozzle from clogging.

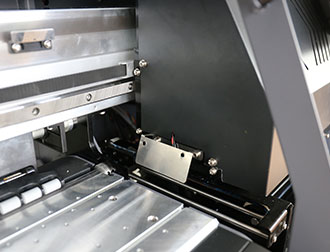

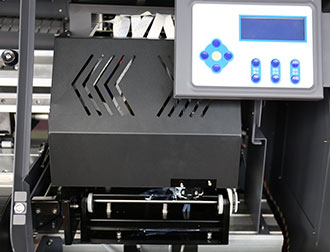

    • 03PRINTING CARRIAGE

      The height of the double-head nozzle independently developed can be adjusted arbitrarily, and it can flexibly respond to different thicknesses of printing materials. The anti-scratch-paper function on both sides of the small frame can reduce the damage of the nozzle caused by the paper tilting.

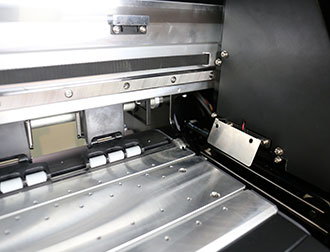

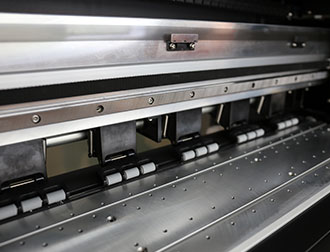

    • 04HIGH-PRECISION PLATPORM

      The assembly precision of the machine printing platform is controlled within plus or minus 7.5 wires, which lays the foundation for high-precision and high-quality production. The overall honeycomb aluminum alloy platform is hard-oxidized on the surface and will not deform for a long time.

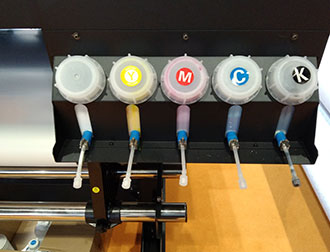

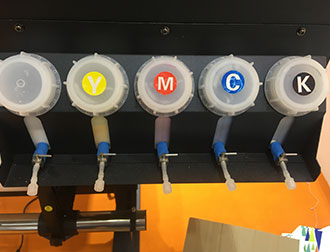

    • 05 INK TANK

      FD70-2 Digital Film Transfer Printer uses four 3L super-large-capacity ink tank with independent and continuous ink supply. The powerful continuous supply ink supply system provides support for the improvement of production efficiency, avoiding the frequent shortage of ink in production and the heavy work caused by back and forth inspection.

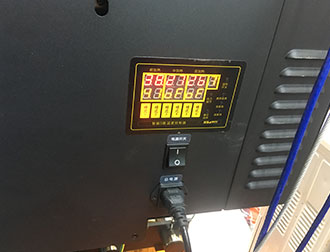

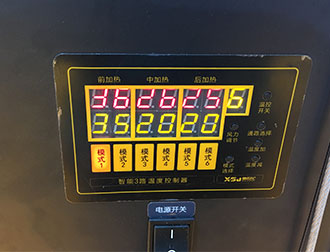

    • 06THREE STAGE HEATING SYSTEM

      Three section body heater to make sure fast drying, each heater is independent on controlling and mode.

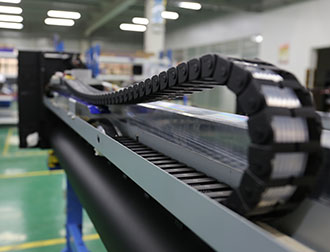

    • 07 STABLE FEDAR SELF-PRINTING SYSTEM

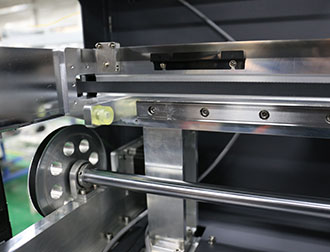

      The core components are made of high-quality industry accessories such as Japanese THK ultra-quiet linear guide rails, Japanese NSK bearings, German IGUS INK chain, LEADSHINE servo motor, etc. All of these ensure the accuracy of the machine and the stability of long-term work.


Application

The FD70-2 Digital Film Transfer Printer can transfer the graphics on cotton, linen, chemical fiber and other fabrics through heating transfer, processing heat treatment such as screen printing, glue, foaming, etc., and can also bake the color labels, portrait photos and landscape patterns on porcelain plates and metal plates, which are especially suitable for making medals, commemorative cards, DIY T-shirts, etc., economical and practical, with exquisite patterns.
